 Home » Products » push button » 16mm Lighted Switches Illuminated Metal Flat Round 12V Red Led Waterproof Push Button

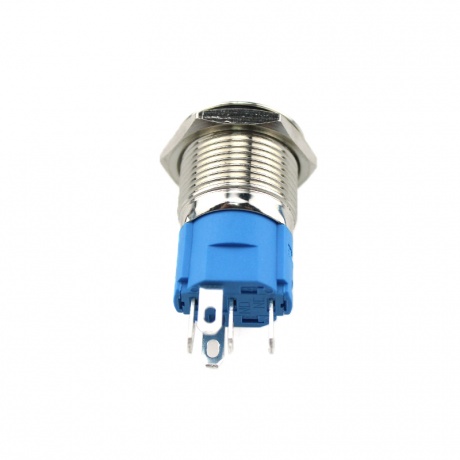

16mm Lighted Switches Illuminated Metal Flat Round 12V Red Led Waterproof Push Button

Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.

16mm Lighted Switches Illuminated Metal Flat Round 12V Red Led Waterproof Push Button

Switching Operation

Type

Diagram

sign

Explanation

1NO



Double breakpoint slow moving contact switch with two terminals

1NO 1NC



Single breakpoint snap change contact switch with three terminals

1NO 1NC



Double breakpoint snap change contact switch with four terminals

Switching Operation

Rated insulation Voltage

250

Heating current Ith

Temperature does not exceed the maximum allowed current

Rated voltage

12V

24V

110V

220V

Rated
 current

AC
 50/60Hz

Resistive load

-

-

5A

3A

Inductive load

-

-

3A

2A

DC

Inductive load

5A

5A

1A

0.5A

Inductive load

2A

2A

0.2A

0.1A

Contact material

Silver Plated Gold

Lamp Ratings

Lamp Type

LED lamp(AC/DC)

Rated Voltage

3V,6V,12V,24V,36V,110V,220V AC/DC

Rated Current

About 15mA

LED Color

G O W P

Life

40000hours

ABS16S-C11Z-E-R (1)ABS16S-C11Z-E-R (2)ABS16S-C11Z-E-R (3)
