The Hokuyo PBS-03JN Infrared Scanning Infrared LED Obstacle Detection Sensor is a less expensive alternative to laser range finders in indoor environments. This infrared laser sensor is perfect for robotic applications. The PBS-03JN is able to report obstacles from 200mm to 3000mm in a 178.2° arc (1.8° angular resolution). Its low power consumption, 24V 250ma, allows it to be used on battery operated platforms.

Scanning Rangefinder
World's smallest
Safety Laser Scanner

A compact design for installation on AGVs,
AGCs as well as in vertical guarding applications.


Conformity Standards
IEC61496-1/3 : Type3
IEC61508 : SIL2
ISO13849-1 : PL d Category3

UBG-04LX-F01 is a laser sensor for area scanning. The light source of the sensor is infrared laser of wavelength 785nm with laser class 1 safety. Scan area is 240º semicircle with maximum radius 4000mm. Pitch angle is 0.36º and sensor outputs the distance measured at every point (682 steps). Laser beam diameter is less than 20mm at 2000mm with maximum divergence 40mm at 4000mm. Principle of distance measurement is based on calculation of the phase difference, due to which it is possible to obtain stable measurement with minimum influence from object’s color and reflectance.

Upgraded with wider detection range and faster response time. More flexible field setting is available and even more suitable for obstacle detection of AGVs or load shifting detection.

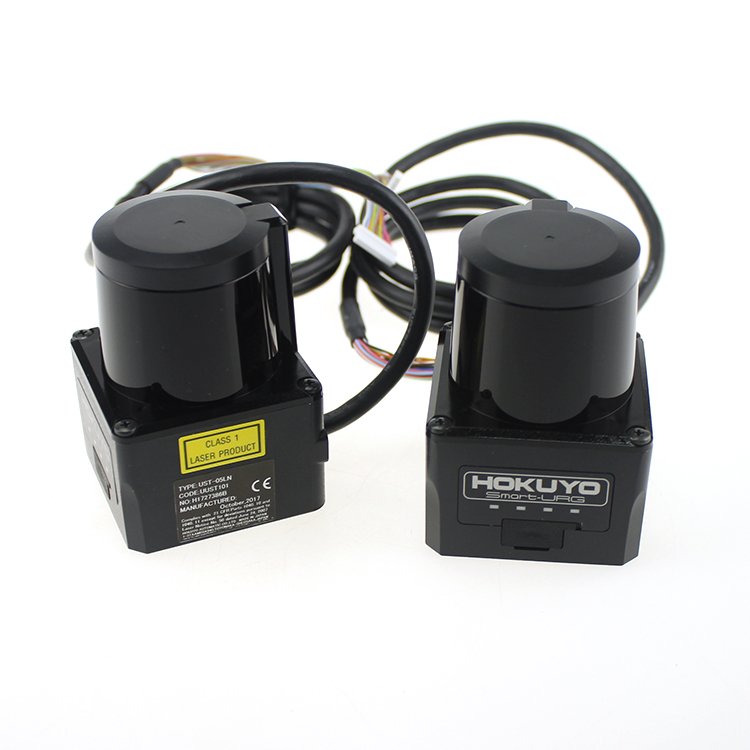

Model:UST-05LN
Brand:Hokuyo

Robot`s eye, No.1 market share.
-> Revolutionary low price!!
-> Laser range finder for autonomous robot.
-> Best for students and researchers who are involved in robotics.
-> Smart to run on USB bus power.

Model:URG-04LX-UG01
Brand:Hokuyo

-> The smallest and the lightest of its kind, 130g
-> Mid-detection range 10m/20m, Wide detection angle 270, Fast response 25msec, High angular resolution 0.25°
-> It is possible to detect size, position and the moving direction of objects.

Model:UST-10LX
Brand:Hokuyo

-> The smallest and the lightest of its kind, 130g
-> Mid-detection range 10m/20m, Wide detection angle 270, Fast response 25msec, High angular resolution 0.25°
-> It is possible to detect size, position and the moving direction of objects.

Model:UST-20LX
Brand:Hokuyo

Scanning Rangefinder

SOKUIKI sensor for intelligent robots

Model:UTM-30LX
Brand:HOKUYO

Scanning Rangefinder

SOKUIKI sensor for intelligent robots

Model:UTM-30LX-EW
Brand:HOKUYO

Scanning Rangefinder

SOKUIKI sensor for intelligent robots

Model:UST-05LA
Brand:HOKUYO

Scanning Rangefinder

SOKUIKI sensor for intelligent robots

Model:UTM-30LN
Brand:HOKUYO
