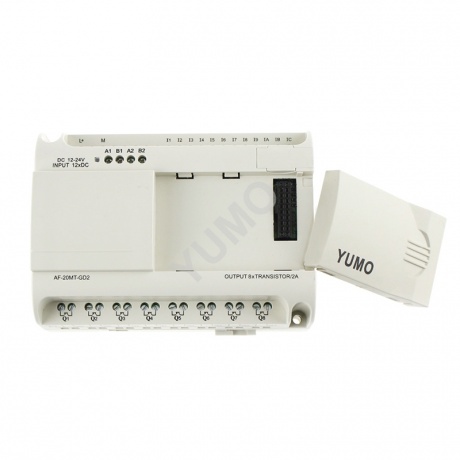

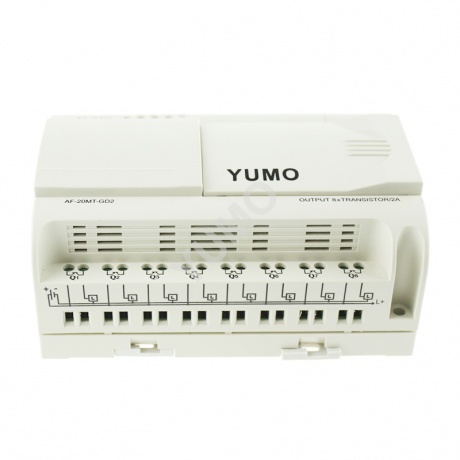

AF-20MT-GD2 PNP transistor output Programmable Logic Controller PLC
AF-20MT-GD2 DC12/24V 12 points DC Digital input 8 points transistor output (exuivalent PNP) plc controller programmable logic controller PLC
Features:
1.Password protection
2.Add power indicator
3.Improve analog accuracy
4.Improve RTC accuracy
5.Improve PLC running speed
6.2 channels with 485 interface and 1 channel with the programing interface
7.Support Text Panel (SH300)
8.Support the standard Modbus RTU protocol (only read)
online service
1.Password protection
2.Add power indicator
3.Improve analog accuracy
4.Improve RTC accuracy
5.Improve PLC running speed
6.2 channels with 485 interface and 1 channel with the programing interface
7.Support Text Panel (SH300)
8.Support the standard Modbus RTU protocol (only read)
Model NO.: AF-20MT-GD2
This model is a DC power supply, rated voltage can be DC12/24V, 12 points DC digital input (can be used as analog input), 8 points transistor output (exuivalent PNP), without LCD.
-
Exquisite and compact design
-
Multi-functional, easy operating, convenient, easy learning
Dimensions: (unit:mm)
Take the 10 points module as an example. The 20 points modules share the same width and height, the only one difference exists in the length.
|
Item |
AF-10MR-A2 |
AF-10MR-D2 |
AF-10MR-E2 |
AF-10MT-D2 |
AF-10MT-GD2 |
AF-10MT-E2 |
|
|
AF-20MR-A2 |
AF-20MR-D2 |
AF-20MR-E2 |
AF-20MT-D2 |
AF-20MT-GD2 |
AF-20MT-E2 |
||
|
Surge Immunity |
2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5) |
||||||
|
Electrostatic Discharge (outer casing) |
±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5) |
||||||
|
Ambient Temperature |
-10℃~+55℃ |
||||||
|
Storage Temperature |
-40℃~+70℃ |
||||||
|
Ambient Humidity |
5%~95%RH |
||||||
|
Degree of Protection |
IP20(Non-waterproof) |
||||||
|
Installation |
Fixing with M3 screws or Standard DIN rail mounting |
||||||
|
Dimensions (mm) |
71.6*90.4*51.3(10 points);126.4*90.4*51.3(20 points) |
||||||
|
Programming Language |
FBD |
||||||
|
Points |
10 points/20 points |
||||||
|
Memory Capacity |
127 FBDs |
||||||
|
Real-time Clock |
160h |
||||||
|
Password Protection |
yes |
||||||
|
Analog Operation |
At most 12 channels with DC 0-10V voltage |
||||||
|
Simulate Monitoring |
Yes |
||||||
|
Communication Interface |
support 2 channel with RS485 and 1 channel with program interfaces |
||||||
|
Baud Rate |
9600bps/19200bps |
||||||
|
Communication Protocol |
Self-defined protocol/MODBUS RTU protocol |
||||||
|
Power Supply |
|||||||
|
Rated Voltage |
AC100-240V |
DC12-24V |
AC/DC12-24V |
DC12-24V |
DC12-24V |
DC12-24V |
|
|
Permissible Range |
DC85-260V |
DC10-28V |
AC/DC10-28V |
DC10-28V |
DC10-28V |
DC10-28V |
|
|
Power Consumption |
<10w |
<7w |
<7w |
<2w |
<2w |
<2w |
|
|
Digital Input |
|||||||
|
Input Type |
NPN/PNP |
NPN/PNP |
NPN/PNP |
NPN/PNP |
NPN/PNP |
NPN/PNP |
|
|
Input Signal 0 |
AC0-40V |
DC0-5V |
AC/DC0-5V |
DC0-5V |
DC0-5V |
DC0-5V |
|
|
Input Signal 1 |
AC80-240V |
DC10-24V |
AC/DC10-24V |
DC10-24V |
DC10-24V |
DC10-24V |
|
|
Isolation |
Photoelectric isolation |
/ |
/ |
/ |
/ |
/ |
|
|
Isolated Group |
6/12 groups |
||||||
|
Isolated Voltage |
2500/5000Vr.m.s |
||||||
|
Digital Output |
|||||||
|
Output Type |
Relay |
Relay |
Relay |
Transistor(NPN) |
Transistor(PNP) |
Transistor(NPN) |
|
|
Isolation Method |
Relay isolation |
Relay isolation |
Relay isolation |
- |
- |
- |
|
|
Analog Input |
|||||||
|
Input Type |
-- |
(DC0-10V)/6 inputs |
-- |
(DC0-10V)/6 inputs |
(4-20mA)/2 inputs |
-- |
|
|
(DC0-10V)/12 inputs |
(DC0-10V)/12 inputs |
(DC0-10V)/12 inputs |
|||||
