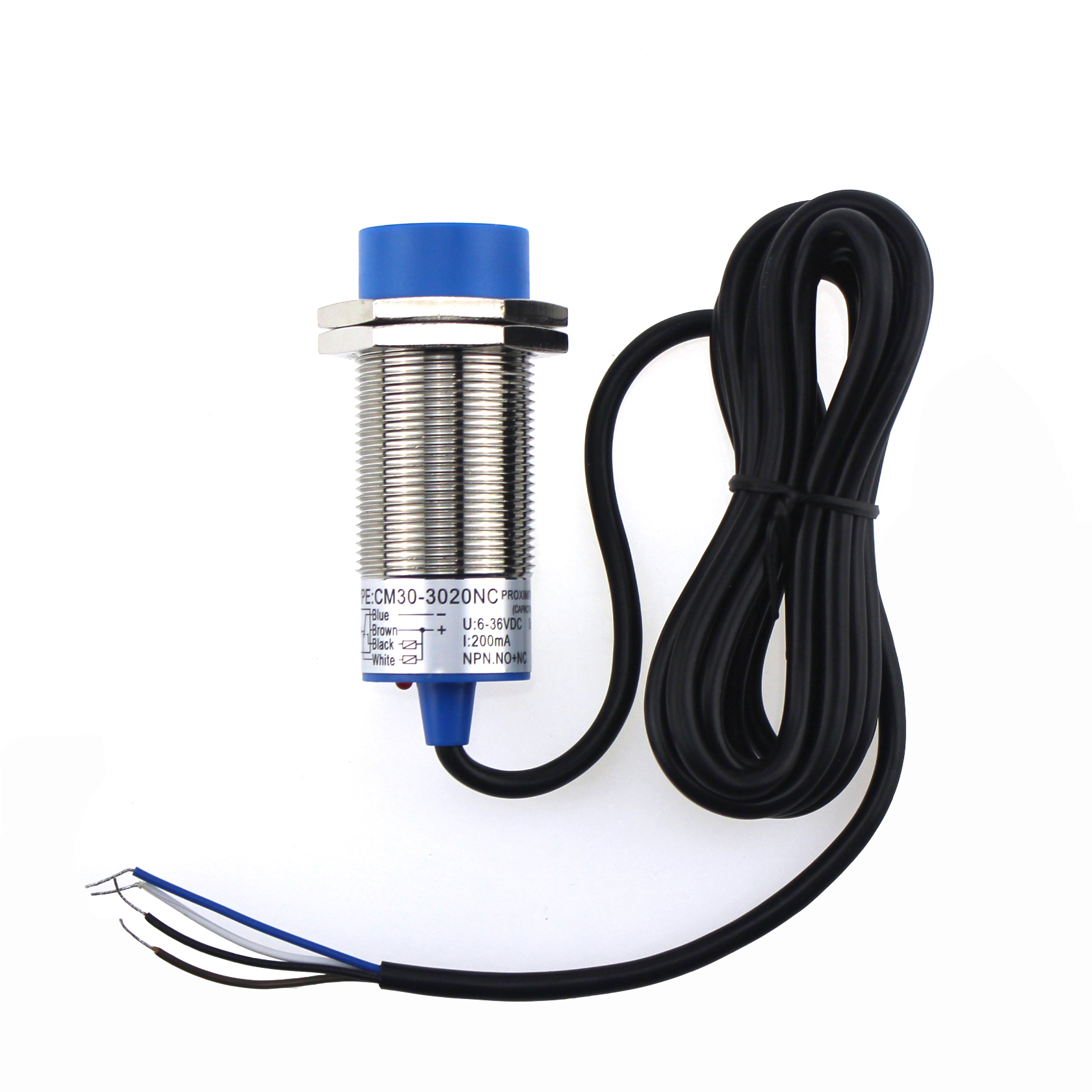

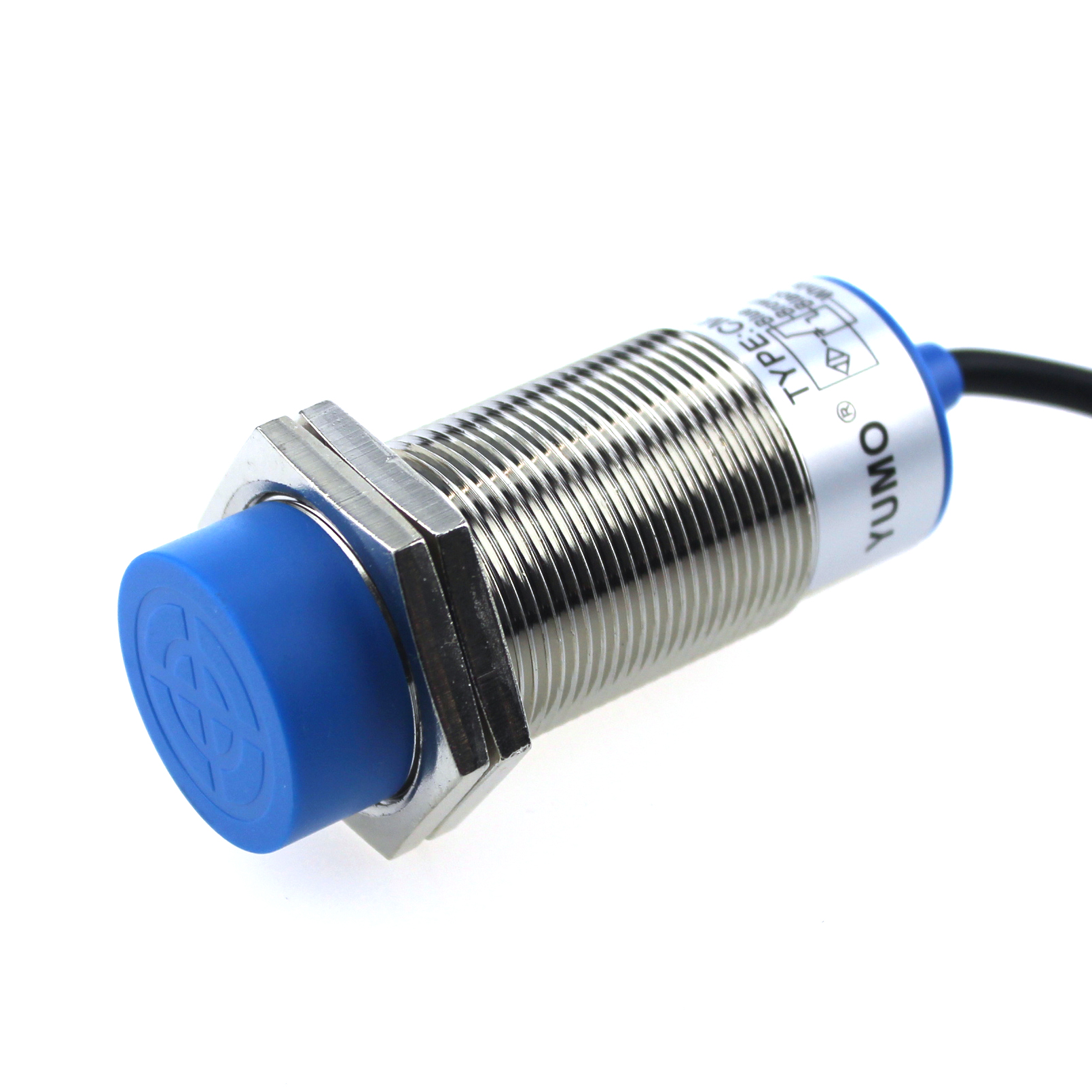

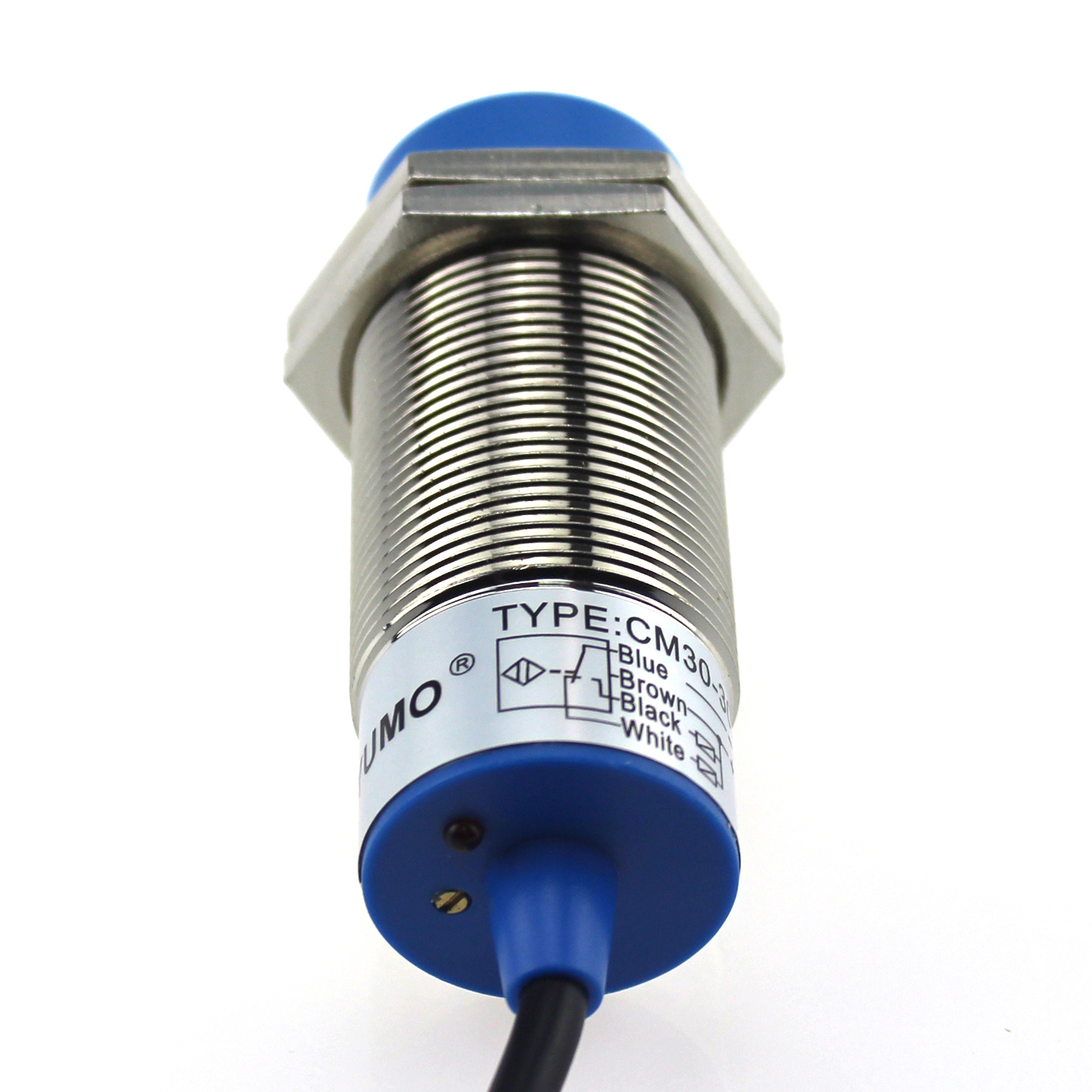

CM30-3020NC capacitance proximity switch sensor

1,Capacitive proximity sensor
2,CE Certification
3,Flush and UNflush type
4,Output state:NO+NC
5,NPN

Introduction

The mechanical quantity to be measured, such as displacement, pressure change into an electrical capacitance sensor. Therefore, capacitive sensors can be divided into pole pitch change type, area change type, change the media type categories. Pole pitch change type is generally used to measure the tiny lines or due to force displacement, pressure, vibration caused by the pole pitch changes (see capacitive pressure sensor). Area change type is generally used to measure the angular displacement or larger linear displacement. Change media type commonly used in level measurement and a variety of medium temperature, density determination and humidity.


Feature

1. Multiplicity appearance

2.  Compact volume

3. High repeat orientation precision

4. Many output form

5. Strong protection distribution

6, High on-off frequency commonly 600Hz

7. Wide voltage range

8. Dustproof, vibration-proof, waterproof and oil-proof

9. With short-circuit protection and inverted connecting protection

10. Service life up to one million

11. Adopts envelop glue, temperature resist, oil-proof colophony in it

12. Limit upgrade product


Working Principle



Outward Appearance


Technical Parameter


OVERALL DIMENSIONS

CM30 M30 capacitance proximity switch sensor

           DETECTION DISTANCE                             0-10mm


F
l
u
s
h


DC
6-
36
VDC




AC
90-
250
VAC

NPN

NO

CM30-3010NA

NC

CM30-3010NB

NO+NC

CM30-3010NC

PNP

NO

CM30-3010PA

NC

CM30-3010PB

NO+NC

CM30-3010PC

SCR
Control-
lable
silicon

NO

CM30-2010A

NC

CM30-2010B

         DETECTION DISTANCE                           0-15mm


F
l
u
s
h


DC
6-
36
VDC




AC
90-
250
VAC

NPN

NO

CM30-3015NA

NC

CM30-3015NB

NO+NC

CM30-3015NC

PNP

NO

CM30-3015PA

NC

CM30-3015PB

NO+NC

CM30-3015PC

SCR
Control-
lable
silicon

NO

CM30-2015A

NC

CM30-2015B

Detectable object’

conductor and dielectric body

Consumption current

(NPN PNP) DC12V 8mA,24V DC<15mA、AC<10mA

Controloutput

200mA,300mA

Output voltagc dropDC/AC

(NPN PNP)DC<3V、AC<7V

DC/AC Response frequency

50Hz,10Hz

Shell material

Metal/ABS Resin,

Working environment temperature

-25℃~70℃

Insulation resistance

50MΩ

Protection structure

IEC IP54 IECstandard lp54

Altemative model at home and abroad

E2k-X15M口




Application Illustration



 The dielectric constants for some important materials are as:

Materials Dielectric constant Materials Dielectric constant Materials Dielectric constant Materials Dielectric constant
Synthectic resin adhesive 3.6 Styrence 3 Alcohol 25.8 Polyvinyl 2.9
Mica 6 Prorcelain 4.4 Glass 5 Quartz glass 3.7
Ebonite 4 Petrolin 2.2 Cardboard 4.5 Silicon 2.8
Marble 8 Quartz sand 4.5 Cable rubber compound 2.5

Paper 2.3 Soft rubber 2.5 Gasoline 2.2

Organic glass 3.2 Water 80 Wood 2.7
