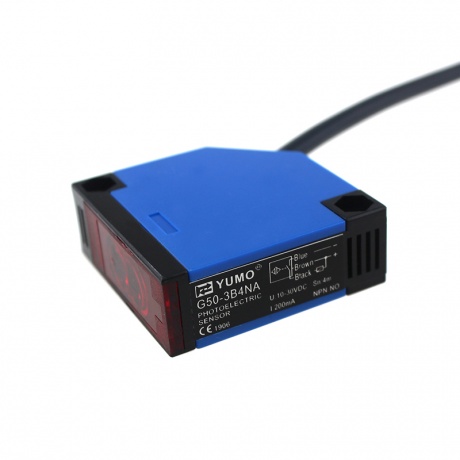

G50-3B4NA retro-reflective NPN NO Infrared ray photoelectric switch sensor
Application:
Detection of thick carton;
Check whether the beer bottle is labeled or not;
Product accounting;
Detection of broken strips in carding machine;
Check out the broken or faulted tobacco rolling paper;
Invasion Prevention of Forbidden Zone.
online service
Application:
Overall dimensions: (unit:mm)
Model composition and definition of infrared ray photoelectric switch:
|
||
| No | Composition | Code and definition |
| 1 | Basic form |
G:Plastic housing infrared ray photoelectric switch E:Metal infrared ray photoelectric switch |
| 2 | Outward appearance code | 18,50,76······ |
| 3 | Working voltage | 2.90-250VAC 3:10-30VDC 4:12-240VDC/24~240VAC 5: Special voltage |
| 4 | Detection way |
A:diffused reflection type(scattered reflection type) B:feedbace reflection type mirror(mirror reflection type) C:penetration type(correlation type) D:marking detection type G:optical fiber type |
| 5 | Detection distance | 05:5cm 10:10cm 30:30cm 101:10cm |
| 6 | Output form |
N:NPN transistor output P:PNP transistor output J: Relay contact output L:AC two-wire output S:With two outputs: NPN and PNP |
| 7 | Output state |
A: Normally open(light entering NO) B:Normally close(light sheltering NC) C: normally open+normally close |
| 8 | Subsidiary |
T1: front delay T2: rear delay Y: oil proof T: with aviation connector I: special requirement |
G50 series photoelectric sensor switch:
