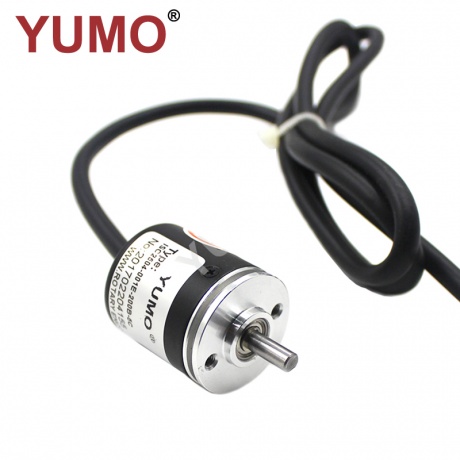

ISC3004 Outer diameter 30mm Solid Shaft Incremental Rotary Encoder
Miniature size, easy assembling
2 quadrature output channel (A&B)
Housing size 30mm, shaft dia. 4mm
online service
ISC3004 Outer diameter 30mm Solid Shaft Incremental Rotary Encoder
◆ Features
● Miniature size, easy assembling
● 2 quadrature output channel (A&B)
● Housing size 30mm, shaft dia. 4mm
· Model: ISC3004
· Brand: YUMO
· Code: YM00000013

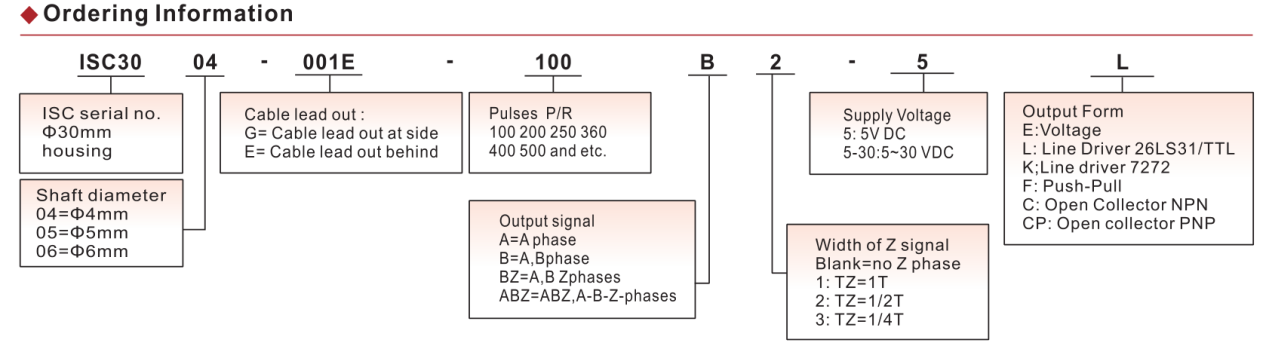

Note
1, Please contact sales representative to confirm the
correctness and availability of the part number
2, Line Driver is only available with 5V DC option
