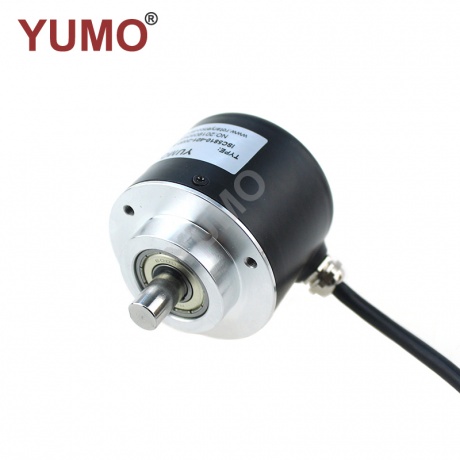

ISC5810-401-2000-BZ1-524-L Outer diameter 58mm Solid Shaft Incremental Optical Rotary Encoder

ISC5810 Optical Encoder
Shaft diameter 10 mm, clamping flange, housing diameter 58 mm
Low price at high performance, small volume, light weight, easy for installing

Optical encoder Applications.
Measure the distance, stop dog positioning,
Curtained door, textile machinery

Model:ISC5810-401-2000-BZ1-524-L
Brand:YUMO

online service

Tel:0086-15356229951

Email: sale@yingselectric.com

Skype: benjaminying

PDF Download
Inquiry
The previous
Next

ISC5810-401-2000-BZ1-524-L Outer diameter 58mm Solid Shaft Incremental Optical Rotary Encoder

Product Description


Application

Automatic control, control of transport vehicles, robot, X-Y labor, printing, fork truck, CNC tooling machine and etc.



Features

High reliability, long life, strong anti-interference ability

2 quadrature output channel (A&B) + index signal

Square flange be used in numerical control machine



Model NO. ISC5810-401-2000-BZ1-524-L
Shaft diameter 10mm
Output form

Line Driver 26LS31/TTL

Output signal A,B Z phases
Housing diameter 58mm
Pulses 2000P/R
Supply voltage 5-24VDC
Load current 60mA
Protection grade IP51



Ordering Information


 Technical Specification

 Electrical  Specification
Output circuit Open collector   Voltage output Push pull output Line driver output
Power Vcc 5~30 5~30 5±0.25   5~30 5±0.25 5~30
Current ≤80mA ≤80mA ≤80mA ≤150mA
Load current 40mA 40mA 40mA 60mA
Max Responding Frequency 300kHz 300kHz 300kHz 300kHz
 Mechanical Specification
Max speed(r/min) Starting Torque Max. Shaft Loading Shocking Vibration
6000 <0.05Nm Radial:20N, Axial:10N 50G/11ms 10G 10-2000Hz
Rotor  Inertia Working Temperature Storage Temperature Protection Grade Weight
4*10-8Kgm2 -30~85℃ -35~95℃ IP51 270g



Connection Table

Signal A B Z A(-) B(-) Z(-) Vcc GND Shielded
Color Green White Yellow Brown Gray Orange Red Black Copper net
7Pin Plug 3 5 2 - - - 1 4 6
9Pin Plug 5 3 2 7 6 8 1 4 9



Dimensions(mm)




Product Pictures

ISC5810 1.JPG
