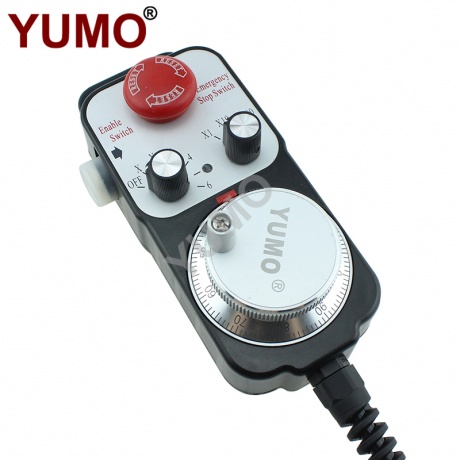

ISMM1468 CNC Machine Tool MPG Rotary Encoder Manual Pulse Generator

Features
● Widely used with CNC machine tools
● 2 quadrature output channel (A&B)
● With enable switch, emergency stop
● Output Form: Line Driver, TTL on option

Model:ISMM1468-001E-100B-5L
Brand:YUMO
Code:YM00000020

 ISMM1468 CNC Machine Tool MPG rotary encoder Manual pulse generator

Application

 Industrial tolling machinery, zero correction of printing machinery or signal cutting , numerical control machine and etc



Features

 Suitable for manual pulses input type such as CNC or milling machine

Ordering Information


Note:

 1:Please contact sales representative to confirm the correctness and availability of the part number

 2:Line Drive is only available with 5V DC,12VDC option


Technical Specifications:

Electrical    Specification

Output circuit

Open collector

Voltage output

Push pull output

Line driver output

Power Vcc

5~30

5~30

5±0.25   5~30

5±0.2512V

Current

100mA

100mA

100mA

120mA

Load current

40mA

40mA

40mA

60mA

High-level output

Min Vcc*70%

Min Vcc-2.5V

Min Vcc-1.5V

Min 3.4V

Low-level output

Max 0.4V

Max 0.4V

Max 0.8V

Max 0.4V

Rise Time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

Fall  Time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

Max Responding Frequency

20kHz

20kHz

20kHz

20kHz

Mechanical   Specification

Max speed(r/min)

Working Temperature

Storage Temperature

Protection Grade

Weight

600

-25~70

-25~85

IP50

750g


Dimensions(mm)

YUMO encoder catalgoue-32


Connection Table


Item

Wire color

Signal

Note













Connection Table 替换







1

Red

+5v

Pulses generator MPG

2

Black

0v

3

Green

A

4

White

B

3*(or 17)

Purple

A-

When Line driver

4*(or 18)

Purple/black

B-

5

Green/black

+

Indicator

6

White/black

-



OFF

Axis selection

7

Yellow

X

8

Yellow/black

Y

9

Brown

Z

10

Brown/black

4

9*(or 15)

Pink

5

select the 5th, 6th axis

10*(or 16)

Pink/black

6





11

Grey

X1

Select multiple

12

Grey/black

X10

13

Orange

X100

14

Orange/black

COM

Control switch

19

Light Blue

C

Emergency button

20

Light blue/black

CN




Shielding

Product Pictures

ISMM1468-001E-100B-5L (2)ISMM1468-001E-100B-5L (3)
