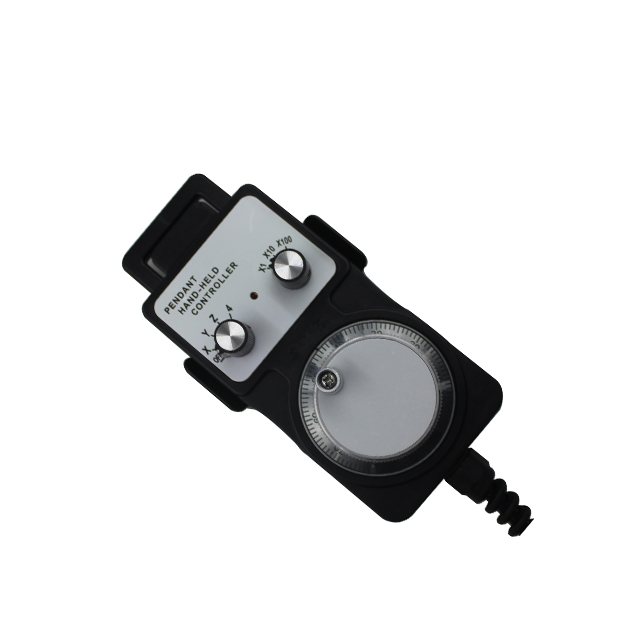

ISMM1469 Pulse Generator MPG Hand wheel CNC Pendant Rotary Encoder

Features
● Widely used with CNC machine tools
● 2 quadrature output channel (A&B)
● With enable switch, emergency stop
● Output Form: Line Driver, TTL on option

Note:

1, Please contact sales representative to confirm the correctness and availability of the part number

2, Line Driver is only available with 5VDC,12VDC option



Technical Specifications



Electrical    Specification

Output circuit

Open collector

Voltage output

Push pull output

Line driver output

Power Vcc

5~30

5~30

5±0.25   5~30

5±0.2512V

Current

100mA

100mA

100mA

120mA

Load current

40mA

40mA

40mA

60mA

High-level output

Min Vcc*70%

Min Vcc-2.5V

Min Vcc-1.5V

Min 3.4V

Low-level output

Max 0.4V

Max 0.4V

Max 0.8V

Max 0.4V

Rise Time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

Fall  Time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

Max Responding Frequency

20kHz

20kHz

20kHz

20kHz

Mechanical   Specification

Max speed(r/min)

Working Temperature

Storage Temperature

Protection Grade

Weight

600

-25~70

-25~85

IP50

750g


Dimensions(mm)

ISMM1469 diemension.jpg

Connection Table
