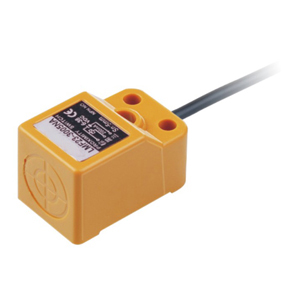

LMF23 Inductive proximity switches sensors
online service
| OVERALL DIMENSIONS |
|
|||
|
|
DETECTION DISTANCE | |||
|
F l u s h |
DC 10- 30 VDC AC 90- 250 VAC |
NPN | NO |
|
| NC |
|
|||
| NO+NC |
|
|||
| PNP | NO |
|
||
| NC |
|
|||
| NO+NC |
|
|||
|
two wire system |
NO |
|
||
| NC |
|
|||
|
SCR Control- lable silicon |
NO |
|
||
| NC |
|
|||
| NO+NC |
|
|||
| Relay output |
|
|||
|
|
DETECTION DISTANCE 5mm | |||
|
F l u s h |
DC 10- 30 VDC AC 90- 250 VAC |
NPN | NO | LMF23-3005NA |
| NC | LMF23-3005NB | |||
| NO+NC | LMF23-3005NC | |||
| PNP | NO | LMF23-3005PA | ||
| NC | LMF23-3005PB | |||
| NO+NC | LMF23-3005PC | |||
|
two wire system |
NO | LMF23-3005LA | ||
| NC | LMF23-3005LB | |||
|
SCR Control- lable silicon |
NO |
|
||
| NC |
|
|||
| NO+NC |
|
|||
| Relay output |
|
|||
| Controloutput | DC | 200mA | ||
| SCR/ Relay |
|
|||
| Output voltagc dropDC/AC |
NPN PNP<3V、two-wire<3.9V AC<10V,DC<3V |
|||
| Consumption current |
DC<15mA、AC<10mA |
|||
| Standard detected object | 20X20X1(A3 iron) | |||
| Repeated precision | 0.05 | |||
| DC/AC | 500Hz | |||
| Working environment temperature | -25℃～+70℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Resin | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad |
|
|||
