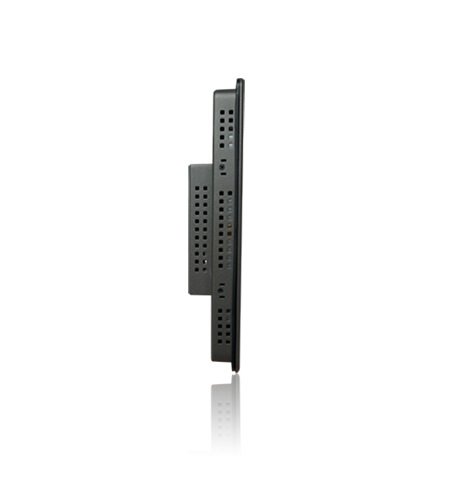

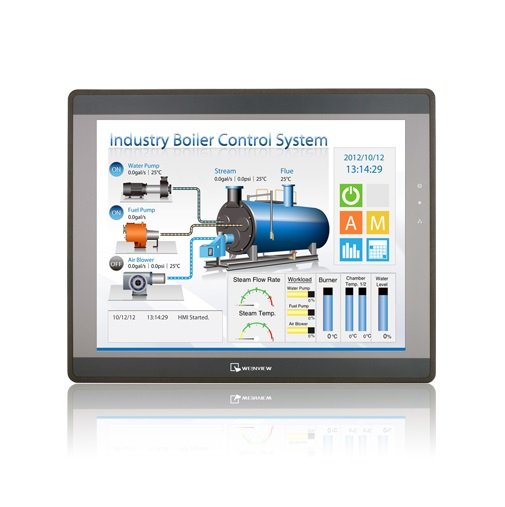

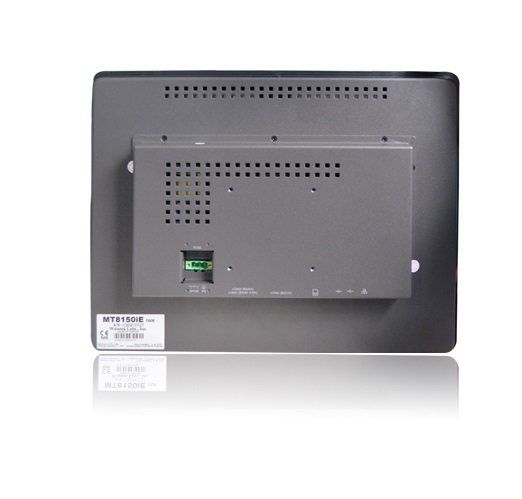

MT8150IE weinview touch screen lcd display weintek HMI

Technical Specifications

 Display

 15" TFT

 Brightness

 350 cd/m2

 Color

 65536 color

 Contrast Ratio

 550:1

 Resolution(WxH)

1024x768

 Back Light

 CCFLx2

 Touch Panel

 4 wires resistive type

 Touch Accuracy

 2mm

 Surface Hardness

 4H

 Serial Interface

COM1(RS232/RS485 2w/4w) COM2(RS232) COM3(RS232/RS485 2w)

 Processor

 32 bit CISC CPU 500 MHz

 Ethernet Port

10/100 Base-T

 I/O Ports

PS/2 Port Connector

 USB Interface

USB 2.0 x 3, Mini USB Port x 1

 Audio

Line Out x1 / MIC x 1

 DRAM

256MB DDR 400MHz

 IDE Interface

44 Pins IDE interface

 RTC

 Built-in

 Input Power

 24±5% VDC

 Power Consumption

 1A@24VDC

 Panel Cutout (WxH)

 352x279mm

 Weight

 Approx 2.9kg
