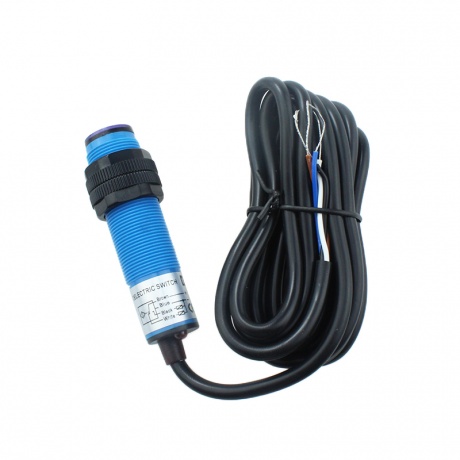

Plastic Cylindrical Photoelectric Electronic Sensor Switch
The mechanical quantity to be measured, such as displacement, pressure change into an electrical capacitance sensor. Therefore, capacitive sensors can be divided into pole pitch change type, area change type, change the media type categories. Pole pitch change type is generally used to measure the tiny lines or due to force displacement, pressure, vibration caused by the pole pitch changes (see capacitive pressure sensor). Area change type is generally used to measure the angular displacement or larger linear displacement. Change media type commonly used in level measurement and a variety of medium temperature, density determination and humidity.
online service
G18 series Photoelectric Sensor switch
| Code | G18 | |||
| Overall dimensions |
|
|||
| Diffuse type | Detection distance | 10-30cm | ||
| 10-30VDC | NPN | NO | G18-3A10NA | |
| NC | G18-3A10NB | |||
| NO+NC | G18-3A10NC | |||
| PNP | NO | G18-3A10PA | ||
| 90-250VAC | NC | G18-3A10PB | ||
| NO+NC | G18-3A10PC | |||
|
SCR Contro Hable silicon |
NO | G18-2B10LA | ||
| NC | G18-2B10LB | |||
| Retroreflective type | Detection distance | 2m | ||
| 10-30VDC | NPN | NO | G18-3B2NA | |
| NC | G18-3B2NB | |||
| NO+NC | G18-3B2NC | |||
| PNP | NO | G18-3B2PA | ||
| 90-250VAC | NC | G18-3B2PB | ||
| NO+NC | G18-3B2PC | |||
|
SCR
Contro Hable silicon |
NO | G18-2B2LA | ||
| NC | G18-2B2LB | |||
| Through beam | Detection distance | 5m | ||
| 10-30VDC | NPN | NO | G18-3C5NA | |
| NC | G18-3C5NB | |||
| NO+NC | G18-3C5NC | |||
| PNP | NO | G18-3C5PA | ||
| 90-250VAC | NC | G18-3C5PB | ||
| NO+NC | G18-3C5PC | |||
|
SCR Contro Hable silicon |
NO | G18-2B5LA | ||
| NC | G18-2B5LB | |||
| DC/SCR Control output | DC:200mA AC:300mA | |||
| DC/AC Consumption current | DC<15mA AC:<10mA | |||
| DC/AC Response time | Dc<2ms AC<2mS | |||
| Directional angle | 3°-10° | |||
| Detected object | transparent or opaque body | |||
| Working environment temperature | -25~+55ºC | |||
| Shell material | Plastic or Metal | |||
| Protection grade | IP54~IP67 | |||
