 Home » Products » HMI » THA62-MT for Xinje 10.1 inch Touch Screen/HMI Operator

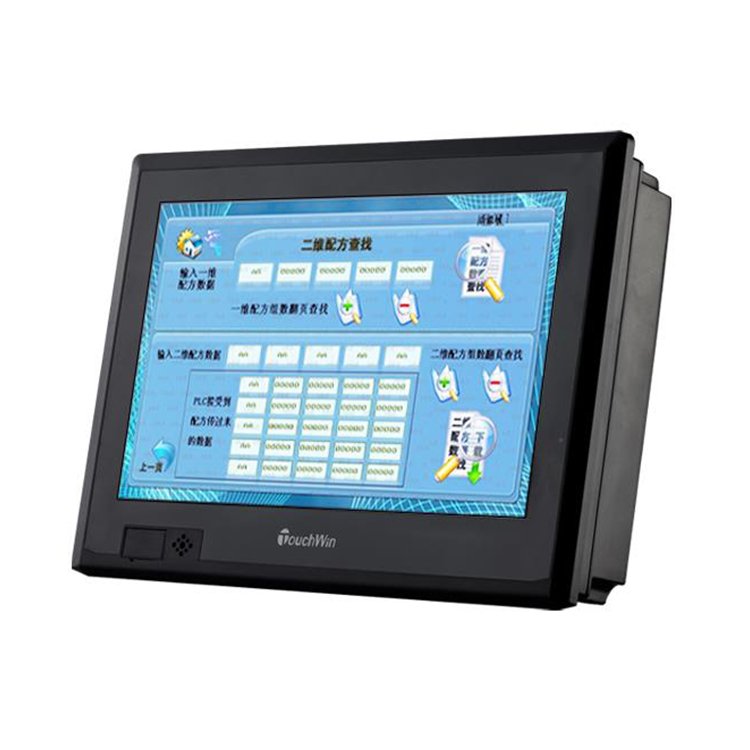

THA62-MT for Xinje 10.1 inch Touch Screen/HMI Operator

1. 10.1 inch touch screen, streamline design
2. 65536 true colors display, support BMP, JPEG format pictures
3. Rich 3D picture library can make the screen more vividly
4. Flexible component selection space, self-defined animation track design
5. Simple switch setting for changing the modes, precise touch area adjust function
6. Self-defined data collection and save function
7. Support various data process modes, such as time trend map, XY trend map…
8. 2 USB ports can realize data duplication and transferring
9. Two com ports can communication independently and realize multi-THs communicate with one PLC.

Product description:

1. 10.1 inch touch screen, streamline design
2. 65536 true colors display, support BMP, JPEG format pictures
3. Rich 3D picture library can make the screen more vividly
4. Flexible component selection space, self-defined animation track design
5. Simple switch setting for changing the modes, precise touch area adjust function
6. Self-defined data collection and save function
7. Support various data process modes, such as time trend map, XY trend map…
8. 2 USB ports can realize data duplication and transferring
9. Two com ports can communication independently and realize multi-THs communicate with one PLC.


Type description:
Series Model LCD size
Resolution
(pixel)
Screen
PORT1
Download port
PORT2
PLC port
PORT3
EXT port
USB-A
port
Download way
THA62 THA62-MT 10.1″ 800*480
128
MB
232/485 232/485/422 - - USB-B
THA62-UT 2

Specifications:


Item
THA62
Electrical Input voltage DC20-DC28V
Consumption current 630mA
Momentary power off allowance Less than 10ms
Withstand voltage AC1000V-10mA 1 minute ( signal and time )
Insulated impedance DC500V- about 10MΩ ( signal and time )
Interface COM1 Support RS-232/RS-485
COM2 Support RS-232/RS422/RS485
USB1 USB-A ( accord with USB2.0 )
USB2 USB-B ( accord with USB2.0 )




Environment Operation temperature 0-50ºC
Reserve temperature -20-60ºC
Environment temperature 20-85% ( no condensation )
Withstand oscillation 10-25Hz ( X, Y, Z each direction 30 minutes 2G )
Anti-jamming Voltage noise: 1000Vp-p, pulse 1us, 1 minute
Surrounding air No corrosive gas
Protection construction IP65
Screen specification Type 65536 true colors
Screen size 10.1 inch
Use life More than 50000 hours24 hours running when surrounding temperature is 25 ºC
Resolution 800*480
Contrast Non-adjustable
Character Chinese, English, Korean, Japanese…
Character size Any size and font
Touch panel 4-wire resistance mode
Memory Screen 128MB
Construction Cooling method Natural air cooling
Exterior dimension 272.2*191.7*51.2mm
Mounting dimension 260.2*179.7mm


Dimension (Unit: mm)
Add 1-2mm for opening hole.
