AF-20MR-E2 DC power supply PLC Programmable Logic Controller

AF-20MR-E2 DC power supply 12 points DC input 8 points relay output mini air conditioning plc controller programmable logic controller PLC

Features:
1.Password protection
2.Add power indicator
3.Improve analog accuracy
4.Improve RTC accuracy
5.Improve PLC running speed
6.2 channels with 485 interface and 1 channel with the programing interface
7.Support Text Panel (SH300)
8.Support the standard Modbus RTU protocol (only read)

online service

Tel:0086-15356229951

Email: sale@yingselectric.com

Skype: benjaminying

PDF Download
Inquiry
The previous
Next

AF-20MR-E2 DC power supply PLC Programmable Logic Controller


Product description

Introduction:
         FAB2 Intelligent Controller Series is a new programmable controller launched by YUMO, with the programming by FBD (Function Block Diagram) , which is simpler and easier to learn than the conventional PLC (ladder diagram and instruction). In the design concept of YUMO FAB2 series products, traditional separated controller of PLC is combined with the writer on which the program can be written directly by using the function keys on the LCD front panel in order to reduce the cost and bring convenience to users. YUMO FAB2 is very compact and light-weighted, especially suitable for internal installation usage.
         In addition, FAB2 intelligent controller series can perform the local and remote Internet communication and monitoring. And FAB2 can be used with voice module to perform telephone remote control, voice prompting, auto-dialing and other functions. At present, the YUMO FAB2 is widely used in various areas such as industry, agriculture and automatic house control. It can be used almost everywhere.



Features:
1.Password protection
2.Add power indicator
3.Improve analog accuracy
4.Improve RTC accuracy
5.Improve PLC running speed
6.2 channels with 485 interface and 1 channel with the programing interface
7.Support Text Panel (SH300)
8.Support the standard Modbus RTU protocol (only read)



Model NO.: AF-20MR-E2

       This model is an DC power supply,rated voltage can be DC12/24V, 12 points DC input, 8 points relay output, without LCD.

         PLC AF-20MR-E2 A1B2 is for general MODBUS communication port, and A2B2 for connect SH-300 only.

  • Exquisite and compact design

  • Multi-functional, easy operating, convenient, easy learning



Dimension:

(unit:mm)

Take the 10 points module as an example. The 20 points modules share the same width and height, the only one difference exists in the length.

Hot sale AF-20MR-E2 DC power supply 12 points DC input 8 points relay output mini air conditioning plc controller

Hot sale AF-20MR-E2 DC power supply 12 points DC input 8 points relay output mini air conditioning plc controller





Item AF-10MR-A2 AF-10MR-D2 AF-10MR-E2 AF-10MT-D2 AF-10MT-GD2 AF-10MT-E2
AF-20MR-A2 AF-20MR-D2 AF-20MR-E2 AF-20MT-D2 AF-20MT-GD2 AF-20MT-E2
Surge Immunity 2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5)
Electrostatic Discharge (outer casing) ±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5)
Ambient Temperature -10℃~+55℃
Storage Temperature -40℃~+70℃
Ambient Humidity 5%~95%RH
Degree of Protection IP20(Non-waterproof)
Installation Fixing with M3 screws or Standard DIN rail mounting
Dimensions (mm) 71.6*90.4*51.3(10 points);126.4*90.4*51.3(20 points)
Programming Language FBD
Points 10 points/20 points
Memory Capacity 127 FBDs
Real-time Clock 160h
Password Protection yes
Analog Operation At most 12 channels with DC 0-10V voltage
Simulate Monitoring Yes
Communication Interface support 2 channel with RS485 and 1 channel with program interfaces
Baud Rate 9600bps/19200bps
Communication Protocol Self-defined protocol/MODBUS RTU protocol
  Power Supply
Rated Voltage AC100-240V DC12-24V AC/DC12-24V DC12-24V DC12-24V DC12-24V
Permissible Range DC85-260V DC10-28V AC/DC10-28V DC10-28V DC10-28V DC10-28V
Power Consumption <10w <7w <7w <2w <2w <2w
   Digital Input
Input Type NPN/PNP NPN/PNP NPN/PNP NPN/PNP NPN/PNP NPN/PNP
Input Signal 0 AC0-40V DC0-5V AC/DC0-5V DC0-5V DC0-5V DC0-5V
Input Signal 1 AC80-240V DC10-24V AC/DC10-24V DC10-24V DC10-24V DC10-24V
Isolation Photoelectric isolation / / / / /
Isolated Group 6/12 groups
Isolated Voltage 2500/5000Vr.m.s
  Digital Output
Output Type Relay Relay Relay Transistor(NPN) Transistor(PNP) Transistor(NPN)
Isolation Method Relay isolation Relay isolation Relay isolation - - -
   Analog Input
Input Type -- (DC0-10V)/6 inputs -- (DC0-10V)/6 inputs (4-20mA)/2 inputs --
(DC0-10V)/12 inputs (DC0-10V)/12 inputs (DC0-10V)/12 inputs



Product pictures

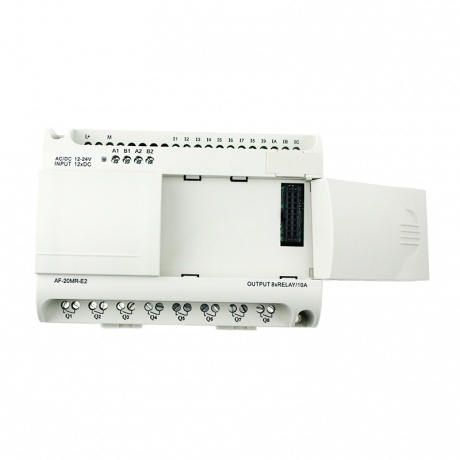

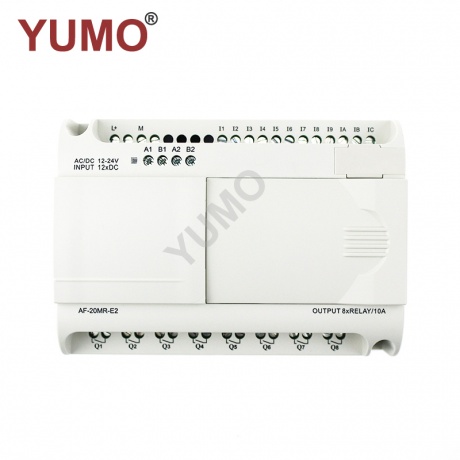

AF-20MR-E2 1

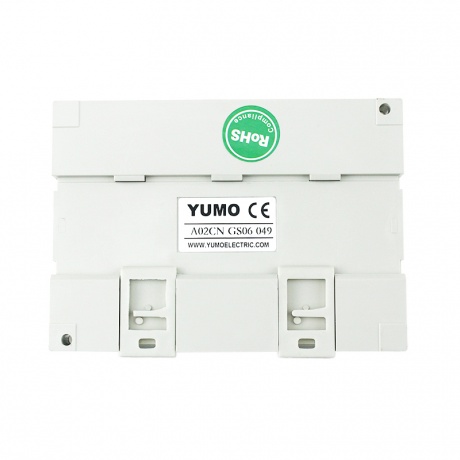

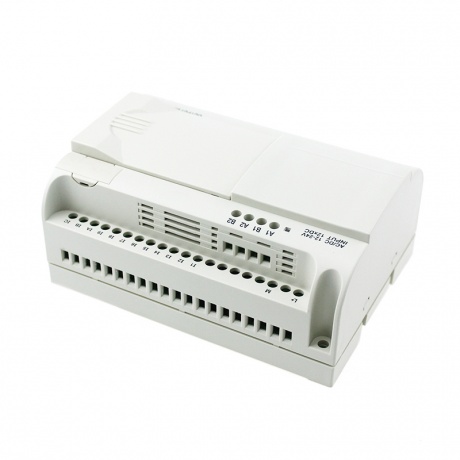

AF-20MR-E2 2

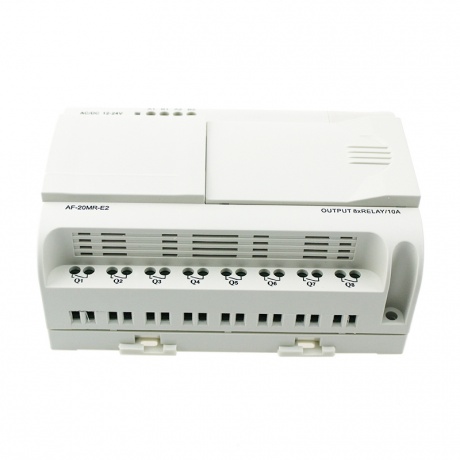

AF-20MR-E2 3
