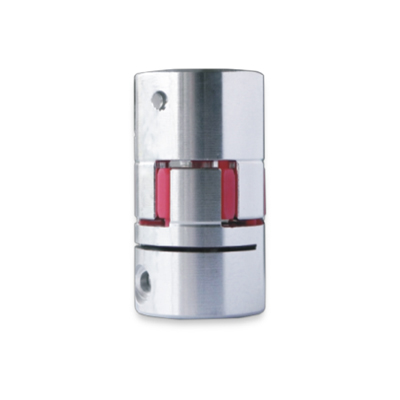

Diaphragm type LD2 encoder coupling

Flexible couplings are usually cut from a metal wire rod made of commonly used materials are aluminum, stainless steel, engineering plastics. Flexible coupling using a parallel or helical grooving system to adapt to a variety of bias and precision torque transmission. Flexible couplings usually have good performance and price advantage, and in many stepper, servo system, the practical application, elastic coupling is the preferred product. One-piece design allows flexible couplings to achieve a zero gap torque transmission and without maintenance

Oldham coupling consists of two half-open on the end face of the coupling groove and a disc with protruding teeth on both sides of the intermediate composition. Protruding teeth can be due to the slide in the groove, it can compensate for installation and operation when the relative displacement between the two shafts.

Steel hubs are zinc plated.
They are precision swaged by a lifetime crimp to unique double loop element made form ELASTACAST polyurethane.
The hubs fix to sharts by metric set screws.
Maximum operating temperature is 80ºC.

◆introduction
Flexible couplings are offered in the industrys largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications. Applications include power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers, and conveyors.
