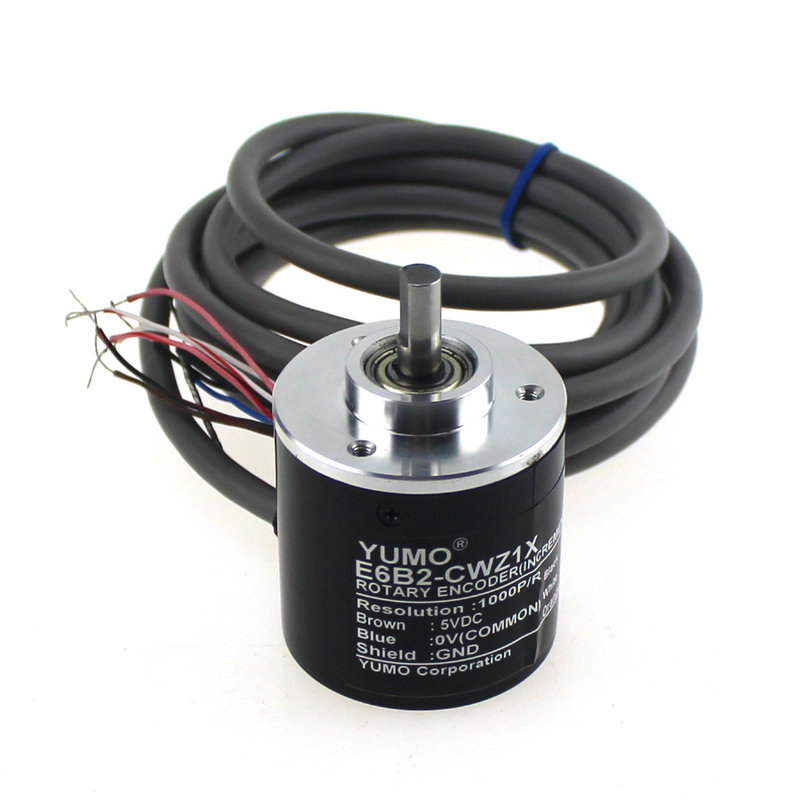

E6B2 Dia 40mm Shaft diameter 6mm Incremental Rotary Encoder
Model: E6B2
Brand: YUMO
Code: YM00000051
online service
E6B2 Dia 40mm Shaft diameter 6mm Incremental Rotary Encoder
E6B2 series ,Housing diameterф40mm, Shaft diameter ф6mm
· Model: E6B2
· Brand: YUMO
· Code: YM00000051
Ordering Information
Feature
· Wide variety of supply voltages and output forms
· Easy-to-adjust zero index(phase Z)with orign indicating function High resolution models(2000 pulses per revolution)substantially improves measuring accuracy
· Rugged construction:6mm(0.24 inch)diameter shaft with radial load ratings of 3 kgf(21.7 ft*lbs)and axial load rating of 2 kgf(14.5 ft*lbs)
· Protected against short-circuit and reversed connections for highly raliable operation avaliable with line driver ouput
Specification
|
code |
voltage |
output circuit |
output signals |
Number of pulses |
||
|
E6B2-CWZ6C |
DC 5-24V |
Open collector NPN output |
NPN |
A,B,Z, phase |
10,30,40,50,60,100,120,180,200,256,300，360,400,500,512,600 |
|
|
|
||||||
|
E6B2-CWZ5B |
DC 12-24V |
PNP |
||||
|
|
||||||
|
E6B2-CWZ3E |
DC 5-12V |
Voltage output |
|
720 800 1000 1024 1200 |
||
|
|
|
|||||
|
E6B2-CWZ1X |
DC 5V |
Line driver output |
1500 1800 2000 2048 |
|||
|
2500 |
||||||
|
E6B2-CWZ5G |
DC12-24V |
Push and pull output |
|
|||
|
|
|
|
|
3600 4000 |
||
Dimension
