 Home » Products » Inductive proximity switch » High Quality LMF4 IP67 Waterproof Flush 5mm Sensing Distance Inductive Proximity Switch Sensor

High Quality LMF4 IP67 Waterproof Flush 5mm Sensing Distance Inductive Proximity Switch Sensor

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. YUMO Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc. YUMO Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch, YUMO will be your best choice.

Model:
LMF4-3005PC
Brand:YUMO
Code:YM0000000010
MOQ:5

High quality LMF4 IP67 waterproof flush 5mm sensing distance inductive proximity switch sensor Product Description:

Main features of proximity switch sensor:

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference
Many output forms
High on-off frequency
Wide voltage range
Dustproof, vibtation proof,waterproof and oil proof
With short-circuit protection and inverted connecting protection
Long service life



Application:

Model NO.

LMF4-3005PC

Working voltage

10-30VDC

Output form

PNP

Output state

NO+NC

Outward appearance

Angular column type

Shell Material

ABS Resin

Protection grade

IP67

Detection distance

5mm

Detection type

Flush


LMF4 series proximity switch sensor:

Detection distance: 5mm

Flush

DC
10-
30
VDC



AC
90-
250
VAC

NPN

NO

LMF4-3005NA

NC

LMF4-3005NB

NO+NC

LMF4-3005NC

PNP

NO

LMF4-3005PA

NC

LMF4-3005PB

NO+NC

LMF4-3005PC

two wire
system

NO

LMF4-3005LA

NC

LMF4-3005LB

SCR
Control-
lable
silicon

NO


NC


NO+NC


Relay output



Flush

DC
10-
30
VDC



AC
90-
250
VAC

NPN

NO


NC


NO+NC


PNP

NO


NC


NO+NC


two wire
system

NO


NC


SCR
Control-lable
silicon

NO


NC


NO+NC


Relay output


Control output

DC

200mA

SCR/ Relay

300mA/1A

Output voltage dropDC/AC

NPN PNP<3V,two wre<3.9V
DC<3V,AC<10V

Consumption current

DC<15mA,AC<10mA

Standard detected object

20X20X1(A3 iron)

Repeated precision

0.03

DC/AC

300Hz

Working environment temperature

-25ºC~+75ºC

Insulation resistance

50MΩ

Shell material

ABS Resin

Protection grade

IP67

Product Pictures:

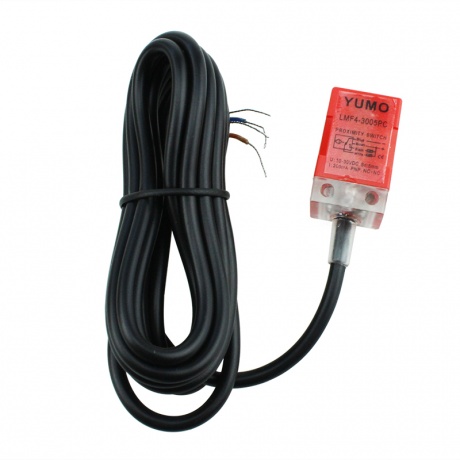

LMF4-3005PC (2)
