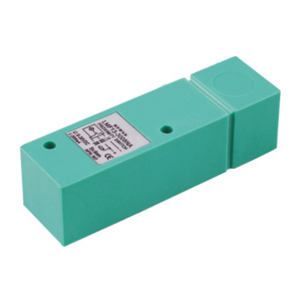

LMF13 Inductive proximity switches sensors
online service
| OVERALL DIMENSIONS |
|
|||
|
|
DETECTION DISTANCE | |||
|
F l u s h |
DC 10- 30 VDC AC 90- 250 VAC |
NPN | NO |
|
| NC |
|
|||
| NO+NC |
|
|||
| PNP | NO |
|
||
| NC |
|
|||
| NO+NC |
|
|||
|
two wire system |
NO |
|
||
| NC |
|
|||
|
SCR Control- lable silicon |
NO |
|
||
| NC |
|
|||
| NO+NC |
|
|||
| Relay output |
|
|||
|
|
DETECTION DISTANCE 8mm | |||
|
F l u s h |
DC 10- 30 VDC 交流 AC 90- 250 VAC |
NPN | NO | LMF13-3008NA |
| NC | LMF13-3008NB | |||
| NO+NC | LMF13-3008NC | |||
| PNP | NO | LMF13-3008PA | ||
| NC | LMF13-3008PB | |||
| NO+NC | LMF13-3008PC | |||
|
two wire system |
NO | LMF13-3008LA | ||
| NC | LMF13-3008LB | |||
|
SCR Control- lable silicon |
NO | LMF13-2008A | ||
| NC | LMF13-2008B | |||
| NO+NC |
|
|||
| Relay output |
|
|||
|
Control output |
DC | 200mA | ||
| SCR/ Relay |
|
|||
| Output voltagc drop DC/AC | DC<3V、AC<10V | |||
| Consumption current | DC<15mA、AC<10mA | |||
| Standard detected object | 25X25X1(A3 iron) | |||
| Repeated precision | 0.04 | |||
| DC/AC | 200Hz/15Hz | |||
| Working environment temperature | -25℃～+70℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Resin | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad |
LJD-口口 |
|||
