 Home » Products » Inductive proximity switch » LMF38 series sensor Plane installation type 1-40mm inductive proximity switch

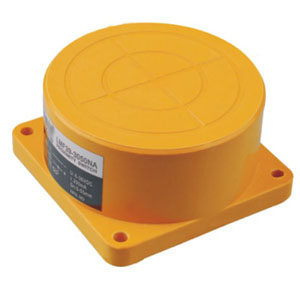

LMF38 series sensor Plane installation type 1-40mm inductive proximity switch

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. YUMO Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc. YUMO Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch, YUMO will be your best choice

LMF38 series sensor Plane installation type inductive proximity switch


Sensing range 1-40mm , angular column inductive inductive proximity switch. China YUMO offer customized design!

Detecting rang mm YUMO part no.
Flush DC 6-36V   NPN NO
NC
NO+NC
  PNP NO
NC
NO+NC
2 Wires NO
NC
AC 90-250V SCR NO
NC
NO+NC
Relay output
Detecting rang 1-40mm
Non-flush DC 6-36V NPN NO LMF38-3040NA
NC LMF38-3040NB
NO+NC LMF38-3040NC
PNP NO LMF38-3040PA
NC LMF38-3040PB
NO+NC LMF38-3040PC
2 Wires NO LMF38-3040LA
NC LMF38-3040LB
AC 90-250V SCR NO LMF38-2040A
NC LMF38-2040B
NO+NC LMF38-2040C
Relay output LMF38-2040JC
LMF38 Sensor Characteristics
Output current DC 200mA
SCR/relay 300mA/2A/10A
Output voltage drop DC≤1.5V /DC(Two wire system)≤5V/ AC≤7V
Consumption current DC≤1mA/ DC(Two wire system)≤13mA /AC≤2mA
Standard detected object 100×100×1(A3 Iron)
Repeated precision 0.5
Response Frequency 50Hz/10Hz
Working environment temperature  -25℃ ~+75℃
Insulation resistance 50MΩ
Shell material ABS Resin * Glass fiber reinforced plastic
Protection grade IEC Standard IP65
Alternative model  TCD-2040□
