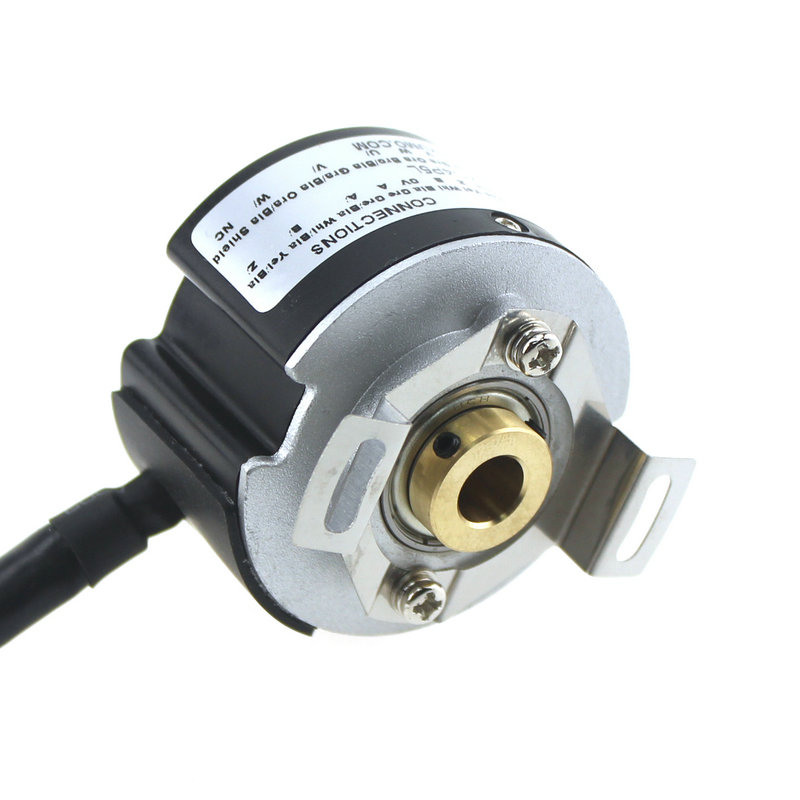

IHU4808-001G-2500BZ1-4P5L absolute encoders rotary encoders hollow shaft encoder
Miniature size, easy assembling
2 quadrature output channel (A&B) + index signal
2500ppr
Housing size: 48mm, shaft dia: 8mm
online service
IHU4808-001G-2500BZ1-4P5L absolute encoders rotary encoders hollow shaft encoder
Features
● Miniature size, easy assembling
● 2 quadrature output channel (A&B) + index
signal
● 2500ppr
● Housing size: 48mm, shaft dia: 8mm
· Model: IHU4808-001G-2500BZ1-4P5L
· Brand: YUMO
· Code: YM0000004
|
Parameter |
Type Value |
Note |
|
Supply Voltage |
DC5V (±10%) |
Max. response frequency is gated by max. rotationspeed |
|
Max. Response Frequency |
200 kHz |
|
|
Max. Rotation Speed (*1) |
4800 rpm |
|
|
Max. Current Consumption |
120mA (Unloaded) |
|
|
Max. Rise-Fall Time |
200ns (Line Driver) |
|
|
Vibration |
5G |
|
|
Shock |
100G |
|
|
Operating Temperature |
-20 ~ 85° C (unfrozen) |
|
|
Storage Temperature |
-20 ~ 85° C (unfrozen) |
|
|
IP Rating |
IP40 |
