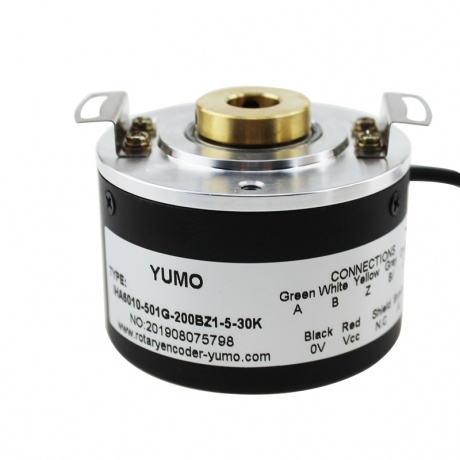

Line Drive Output 10mm Hollow Shaft Optical Rotary Encoder

Application:
Used in area of automatic control, measurements, robotic X-Y labor and printing and packing.

Features:
High reliability, long life, strong anti-interference ability and wide range of temperature adaption.
Multiple ways of wiring connection.

Model:IHA6010-501G-200BZ1-5-30K
Brand:YUMO
MOQ:1

Line drive output 10mm hollow shaft Optical rotary encoder

Product description

Application

Used in area of automatic control, measurements, robotic X-Y labor and printing and packing.



Features

High reliability, long life, strong anti-interference ability and wide range of temperature adaption.

Multiple ways of wiring connection.


Model NO. IHA6010-501G-200BZ1-5-30K
Supply Voltage 5-30VDC
Output form Line Driver 7272
Output singal A,BZ phase
Pulses 200P/R
Cable lead out Cable lead out at side
Protection grade IP50
Housing diameter 60mm
Hollow diameter 10mm

Ordering Information


Note
Please contact sales representative to confirm the correctness and availability of the part number.



Technical Specifications

Electrical  Specification

Output circuit

Open collector

Voltage output

Push pull output

Line driver output

Power Vcc

5~30

5~30

5±0.25   5~30

5±0.25 5~30

Current

≤80mA

≤80mA

≤80mA

≤150mA

Load current

40mA

40mA

40mA

60mA

High-level output

Min Vcc*70%

Min Vcc-2.5V

Min Vcc-1.5V

Min 3.4V

Low-level output

Max 0.4V

Max 0.4V

Max 0.8V

Max 0.4V

Rise Time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

Fall  Time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

Max Responding Frequency

300kHz

300kHz

300kHz

300kHz

Mechanical Specification

Max speed(r/min)

Starting Torque

Max. Shaft Loading

Shocking

Vibration

6000

<0.12Nm

Radial:85N, Axial:50N

50G/11-ms

10G 10-2000Hz

Rotor  Inertia

Working Temperature

Storage Temperature

Protection Grade

Weight

4*10-8Kgm2

-30~85ºC

-35~95ºC

IP50

300g



Connection Table

Signal

A

B

Z

A(-)

B(-)

Z(-)

Vcc

GND

Color

Green

White

Yellow

Brown

Gray

Orange

Red

Black



Dimensions (mm)

YUMO encoder catalgoue-21

Product pictures

IHA6010-501G-200BZ1-5-30K (3)
