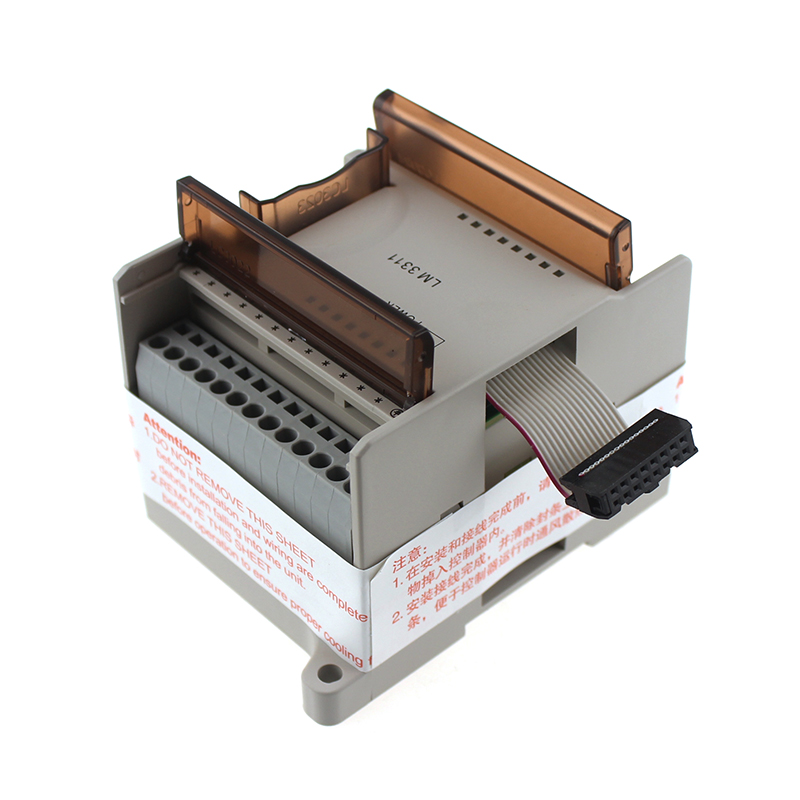

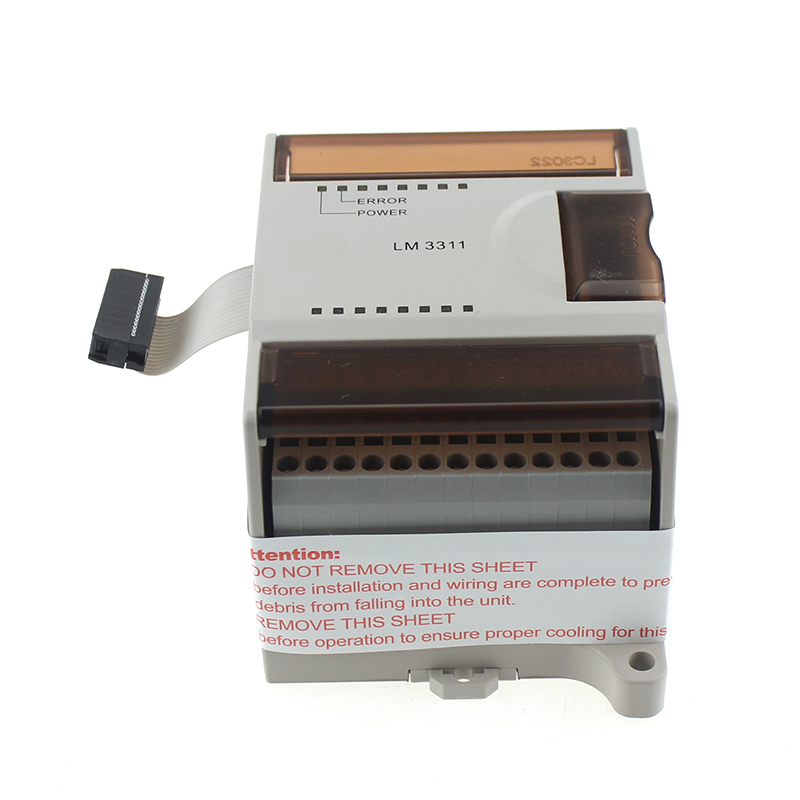

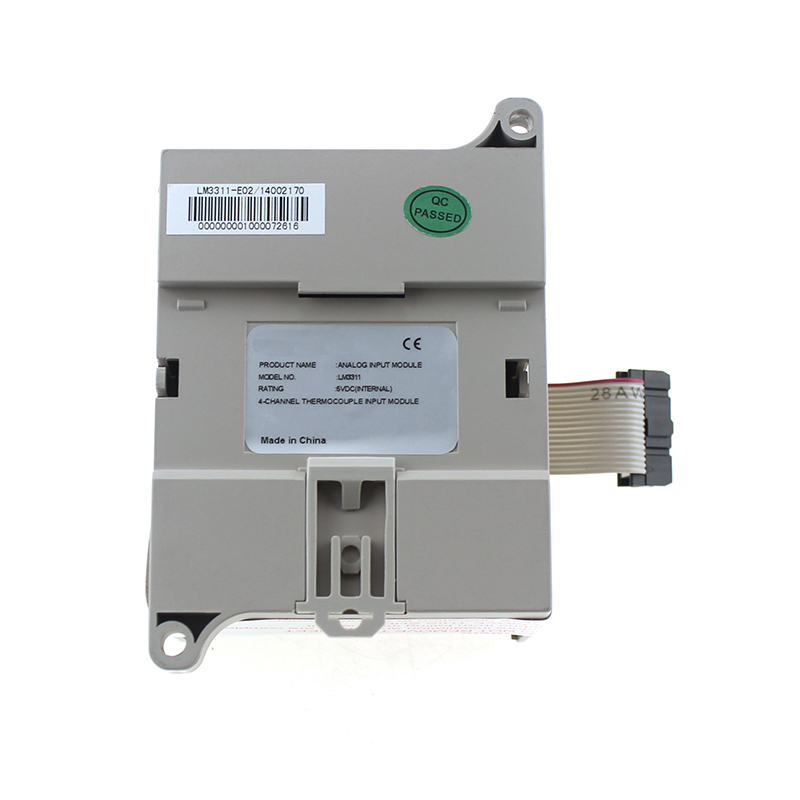

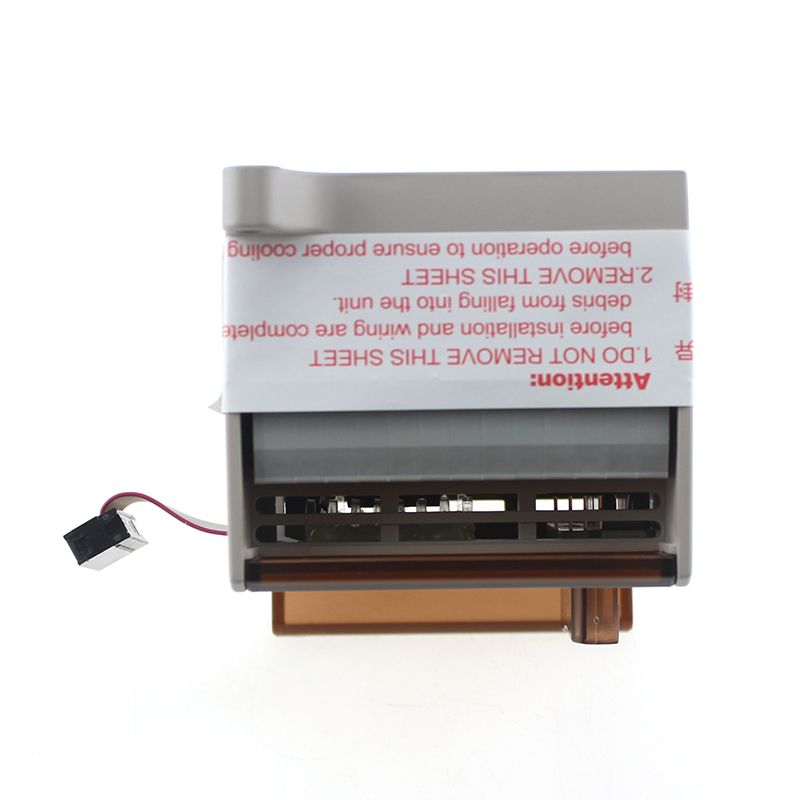

LM3311 PLC for Intelligent Control Programmable Logic Controller

AO Module LM3311 (2CH Analog Output)
1.PLC controllers ,controller PLC, Programmable logic controller
2.CE approved
3.reasonable price and high quality

AO Module LM3311 (2CH Analog Output)

Output channel: 2
Output precision: 2% full range (0∼55)
Typical precision: 0.5% full range, at 25



Output Features


Output channel
2
<>
Output range
Voltage
6V
Current
0∼20mA
Precision (0∼55)
2% full range
Typical precision
0.5% full range, at 25
Setup time
Voltage output
<=10us
Current output
<=10us
Drive capacity
Voltage
Minimum 2000Ω
Current
Maximum 600Ω
Isolation mode
Photocoupler isolation
Maximum Isolation Voltage
1500VAC



Physical Features

Dimensions
75mm(L)×90mm(W)×70mm (H)
Weight
<200g
Power
Consumption
+24VDC (Provided by
expansion bus)
0mA
+24VDC (External supply)
80mA
+5VDC (Provided by
expansion bus)
60mA
