LMF15 Inductive proximity switches sensors
online service
| OVERALL DIMENSIONS |
|
|||
|
|
DETECTION DISTANCE 2mm | |||
|
F l u s h |
DC 10- 30 VDC AC 90- 250 VAC |
NPN | NO | LMF15-3002NA |
| NC | LMF15-3002NB | |||
| NO+NC | LMF15-3002NC | |||
| PNP | NO | LMF15-3002PA | ||
| NC | LMF15-3002PB | |||
| NO+NC | LMF15-3002PC | |||
|
two wire system |
NO | LMF15-3002LA | ||
| NC | LMF15-3002LB | |||
|
SCR Control- lable silicon |
NO | LMF15-2002A | ||
| NC | LMF15-2002B | |||
| NO+NC |
|
|||
| Relay output |
|
|||
|
|
DETECTION DISTANCE 4mm | |||
|
F l u s h |
DC 10- 30 VDC AC 90- 250 VAC |
NPN | NO | LMF15-3004NA |
| NC | LMF15-3004NB | |||
| NO+NC | LMF15-3004NC | |||
| PNP | NO | LMF15-3004PA | ||
| NC | LMF15-3004PB | |||
| NO+NC | LMF15-3004PC | |||
|
two wire system |
NO | LMF15-3004LA | ||
| NC | LMF15-3004LB | |||
|
SCR Control- lable silicon |
NO | LMF15-2004A | ||
| NC | LMF15-2004B | |||
| NO+NC |
|
|||
| Relay output |
|
|||
|
Controloutput |
DC | 200mA | ||
| SCR/ Relay |
|
|||
| Output voltagc dropDC/AC | DC<3V、AC<10V | |||
| Consumption current | DC<15mA、AC<10mA | |||
| Standard detected object | 15X15X1(A3铁iron) | |||
| Repeated precision | 0.02 | |||
| DC/AC |
|
|||
| Working environment temperature |
|
|||
| Insulation resistance |
|
|||
| Shell material |
|
|||
| Protection grade |
|
|||
| Altemative model at home and abroad |
ST-F-口 |
|||
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

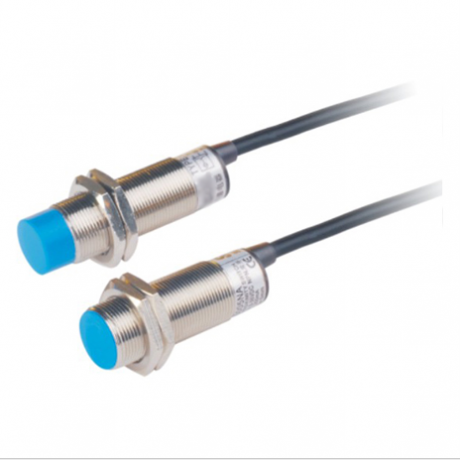

LM18-3008PC Inductive proximity switch sensor
