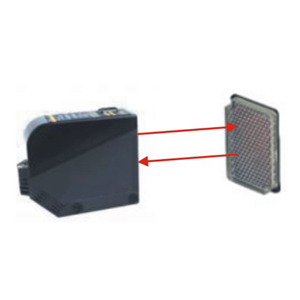

PHOTOCELL SENSOR （G50 SERIES）
Technical Parameter
| Type | Free voltage,Relay contact output | ||||||
| Model |
Trough beam BX15M-TFR |
(*1)Retroreflective(*1) BX5M-MFR |
Diffuse BX700-DFR |
||||
| Overall dimensions＆dimensions |
Trough beam Retroreflective Diffuse
|
||||||
| Detection distance | 15m | 0.1m-5m |
700mm(200×200mm) 700mm(200×200mm Non glossy white paper) |
||||
| Detecting distance |
Φ15mm Opaque material of Min.Φ15mm |
Φ60mm Opaque material of Min.Φ60mm |
Transpqrent,Translucent，Opaque distance |
||||
| Response distance | __________________ | VR Adjustable by VR | |||||
| Response speed | 20mS Max:20mS | ||||||
| Power supply voltage | 24 to 240VAC±10%50/60Hz,24to240VDC±10%(RippleP-P:Max10%) | ||||||
| Sensitivity | __________________ | VR Adjustable by VR | |||||
| Operating Mode | Light ON/Dark ON Selectable Light ON/D or ark ON by slide switch | ||||||
| Control output | Relay output | Capacity：30VDC 3A Resistive load,250VAC 3A Resistive load | |||||
| Contact orde:1C | |||||||
| Self-diagnostic Output | Green LED turns on at unstable operation | ||||||
| imer function |
One shot delay by slide switch Delay time:0.1to 5sec.adjustable by VR |
||||||
| Protection | IP54(IEC Standard) | ||||||
Application
