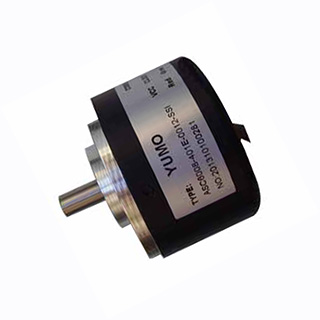

60mm 8mm 10bit 13bit output SSI solid shaft Absolute Encoder
It is suitable for automated measurement and automatic control system. it can measure angular displacement and placed speed. And can be measured values in circulation binaries or natural binaries to output
online service
Features:
LAP zero power fixed and it is unacted on power cutting and system open and closed.
It output value of single function and strong anti-jamming capability.
Magnetoelectric principle, antipollution ability, dust moistureproof sex and strong vibration shock
resistance Precision compact structure, small volume weight and the performance is stable and reliable.
Code specification
Specification parameter
Electrical parameters
|
Classification project |
power voltage | Outcoming signal | current consumption | output Waveform | Rise/Fall Time | Response Frequency | Insulation Resistance | ||
| High level(v) | Low level(v) | permissible Injection current | ＜100mA | ＜US | 0-1m | ＞100mΩ | |||
| Absolute Code | 5 | ≥2.5 | ≤1 | mA | |||||
CONNECTION TABLE
| Cable color | Red | Black | Green | White | Yellow | Brown | Grey | orange | Shield |
| Signal(voltage) | Vcc | ov | Clock | Date | Spare | - | - | Spare | shell |
| Signal(Drive TTL) | Vcc | ov | Clock | Date | Spare | - | Spare | shell |
Mechanical characteristics
