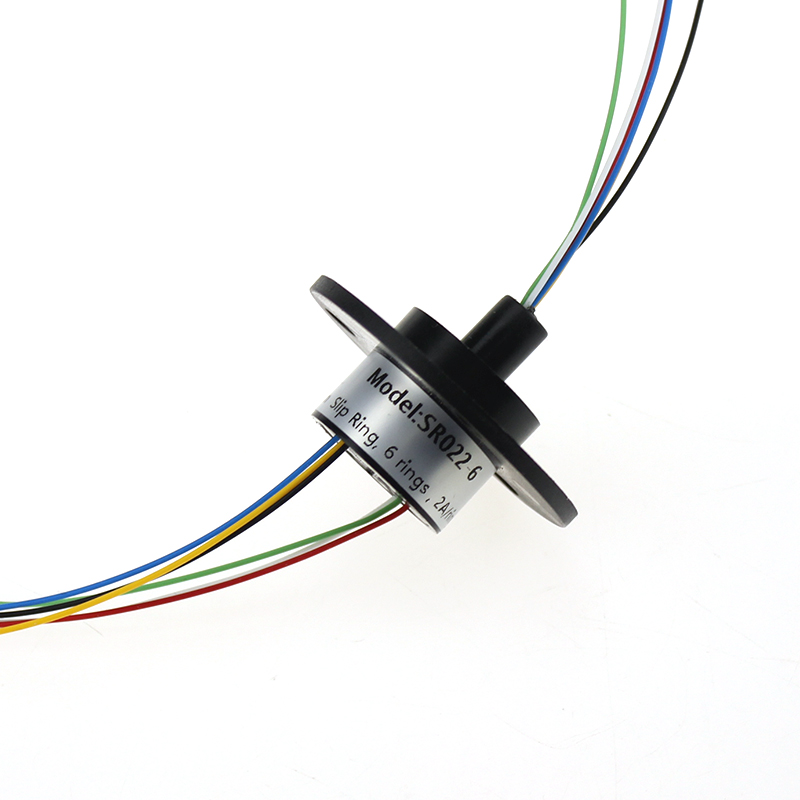

Capsule Slip Ring OD 22mm 6 Circuits 2A Electrical Contacts with CE,ROHS Certificated

The SR022-6, with 6 wires and compact 22.00mm body diameter, which we call our “mini”, is our newest design and smallest physical package.uses YUMO's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

online service

Tel:0086-15356229951

Email: sale@yingselectric.com

Skype: benjaminying

Capsule Slip Ring OD 22mm 6 Circuits 2A Electrical Contacts with CE,ROHS Certificated

The SR022-6, with 6 wires and compact 22.00mm body diameter, which we call our “mini”, is our newest design and smallest physical package.Uses YUMO's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

  1. SR is a kind of standard cap slip ring with current 2A.

  2. The internal structure of the reactor is more precise and compact with the domestic advanced surface treatment technology of military industry.

  3. The use of gold-gold contact points ensures stability and service life, and is mainly used for civilian and commercial applications.

  4. Smooth running, compact structure, low torque, compatible data bus protocol.

  5. Color conductor is used to connect the stator and rotor to simplify the circuit connection.

  6. The conductive ring adopts a 90-degree V groove design with smooth rotation, low torque and low electrical noise.

  7. Class product integrated structure, advanced fiber brush technology, support power, signal mixed transmission.

Product information

Path number 6
Rotate speed 250 RPM/min
Rated current 2A/ channel
Protection class IP54
Rated voltage 220V
Contact material Precious metal
Insulation resistance 500mΩ @ 500VDC
Case material engineering plastics
Electrical noise  10 m Ω @ 6 VDC, 50 ma, 5 RPM
Torque  0.01 N.M
Working life is over 5 million revolutions
Bearing high precision ball bearing
Working temperature 40 ℃ ~ + 80 ℃
Wire specification AWG#28 Teflon wire UL
Relative humidity 60%
Wire length 250mm
Mechanical vibration MIL- sid-810e
Certification RoHS、CE
Inner diameter * outer diameter  0 * 22mm

Dimensions(mm)

SR022-6 尺寸图
