YUMO SRC022-24-4P/6S 10rings 2A Electrical Contacts Capsule Slip Ring

The carbon brush holder for slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The carbon brush holder for slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

Model:SRC022-24-4P/6S
Brand:YUMO
MOQ:10

YUMO SRC022-24-4P/6S 10rings 2A electrical contacts Capsule slip ringProduct Description

 The carbon brush holder for slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The carbon brush holder for slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

Specification List
Model #Rings Continous DIA*LG
2 6 10
SR022 SERIES
SR022-6 6 6

φ22*19
SR022-12 12 12

φ22*28
SR022-12-2P/2S 4 2 2
φ22*28
SR022-15 15 2

φ22*29.5
SR022-18 18 18

φ22*33.4
SR022-18-3P 3

3 φ22*33.4
SR022-24 24 24

φ22*41.2
SR-022-24-4P/6S 10 6 4
φ22*41.2
Mechanical data
Specification Unit
Operate Speed 250 rpm
Temperature range -20ºC~+80ºC
Contact material surface Gold - gold
The steel bearing The precise small steel ball bearing
Electric data
Specification Unit
Voltage 240VDC-240VAC
Currrent Standard 2A 2 rings per ring combined with 4A
Lead size Colour coded FPE insulated lead wires
Standard Lead length 250mm
High pot 500VAC@60Hz 60S
Insulation Resistance 1000MΩ/500VDC
Dynamic contact Resistance <0.01Ω

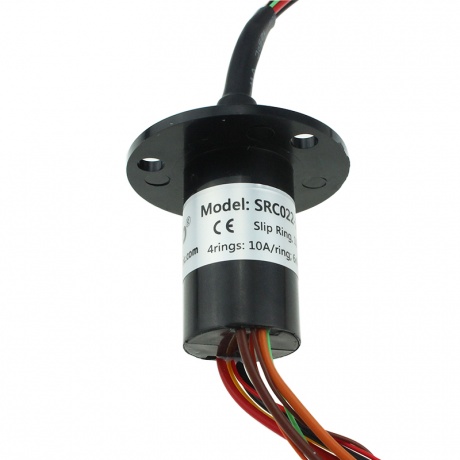

Product Pictures

SRC022-24-4P 6S (5)SRC022-24-4P 6S (1)SRC022-24-4P 6S (2)
