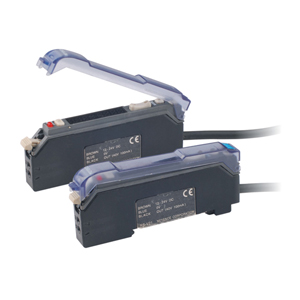

E3X-NT11 Fiber Optic Amplifier

Ultra-thin, is only lOmm thick and ICH based, saving spaces for machines
Push one button to easily carry out teaching process
Four fiber-optic modules can be closely installed together without interfering each other
With the protection structure of IP66, can be safely used even in the humid environment
The working hours for adjustment are reduced by using the teaching function

online service

Tel:0086-15356229951

Email: sale@yingselectric.com

Skype: benjaminying

E3X-NT11 Fiber optic amplifier

Features
●Ultra-thin, is only lOmm thick and ICH based, saving spaces for machines
●Push one button to eaure of IP66, can be safely used even in the humid environment
●The working hours for adjustment are reduced by using the teaching function

Tecnical parameters

Project

General-purpose NPN

output

 Model:E3X-NT11


light source(ight-emitting wave length)

(380mm) Red light-emittng diode(380mm)

Power supply

 DC12~24V±10%of corrugated(P-P)10% of the following

Current consumption

≤50mA

Output Control

Following is a lOOmA load current(voltage of lV to stay below) show the root NPN/PNP output in the form of different and

Protection of the loop

Then reverse power protection, output short-circuit
protection, mutual interference function.

Response time

Action,reversion,the following 500uS(set off
in the distance detection)

Teach-in function to confirm

That light(red,green,2-color,Ming-feng)

Lighting

Smooth by the light,incandescent;3000rx below ,following the sun lOOOrx

Ambient temperature

When action:-2+55℃,savetime:40~70℃(there can not be frozen, the phenomenon of condensation)

Surrounding humidity

34~85%RH,Save:Save time:35~95%RH
(can not have the phenomenon ofcondensation)

Insulation resistance

20mΩ 以上(DC500MV以兆计)20mΩ above(DC500MV to trillion dollars)

Voltage

AC1,000V 50/60Hz 1min

Vibration(durable)

10~50Hz complex amplitude l.5mmor 300m/s2 X,Y,Z direction of the 2h

The impact of(durable)

 500m/s2 X,Y,Z direction of the 3back

Protection of the structure

IBC standard IP50(when the installation of protective cover)

Connection

Lead-based(standard long line 2m)

Weight(in packing cases)

100g

Materials

Shell

 P-ethylene salt ll

Theprotective

shield

 Polyester

Accessories

The installation of metal parts,operating manuals
