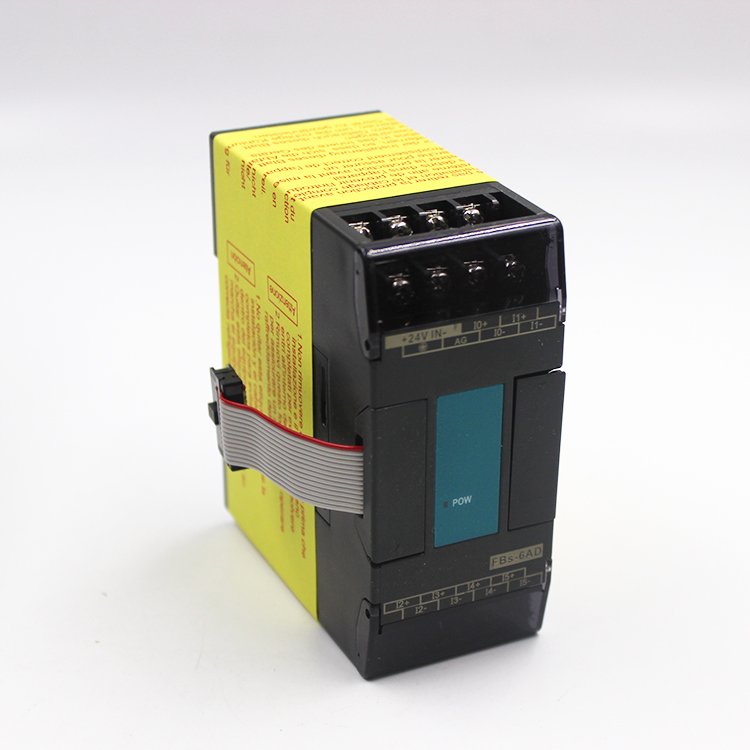

Fatek PLC Extension Module FBs-6AD PLC

online service

Tel:0086-15356229951

Email: sale@yingselectric.com

Skype: benjaminying

PDF Download
Inquiry
The previous
Next

Technical Parameters:

Specification

FBs-6AD

Input point

6 points

Output point

-

Input/Output value

-8192~8191 or 0~16383 (14-bit)

  Input/output

Bipolar

Voltage: -10~10V or -5~5V Current: -20~20mA or -10~10mA

Signal range

Unipolar

Voltage: 0~10V or 0~5V Current: 0~20mA or 0~10mA

Maximum resolution

Voltage: 0.3mV (5V/16384) Current: 0.61μA (10mA/16384)

Accuracy

±1%

Conversion time

Conversion once for each scan

Maximum input signal

Input voltage: ±15V Input current: ±30mA

Allowable load range

-

Input impedance

Input voltage: 63.2KΩ Input current: 250Ω

Isolation method

Transformer(power) and photocouple(signal) isolation, 500VAC, 1 minute, no isolation between each channel

Power consumptio

24VDC -15%/+20%, 3.2W max.

Wiring mechanism

7.62 mm fixed terminal block


Model


FBs-2DA

2 channels, 14-bit analog output module (-10~10V, 0~10V or -20~20mA, 0~20m

FBs-4A2D

4 channels, 14-bit analog input (same specification as 6AD)+2 channels, 14-bit analog output (same specification as 2DA) combo module

FBs-6AD

6 channels, 14-bit analog input module (-10~10V, 0~10V or -20~20mA, 0~20m

FBs-6RTD

6 channels, RTD temperature input module with 0.1°C resolution.

FBs-8X

8 points 24 VDC digital input

FBs-8YR

8 points relay  output
