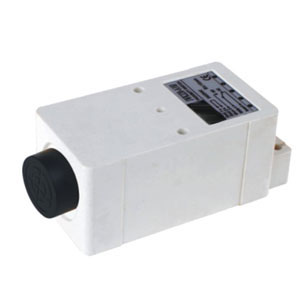

JWK220-D110J Inductive proximity sensors

online service

Tel:0086-15356229951

Email: sale@yingselectric.com

Skype: benjaminying

PDF Download
Inquiry
The previous
Next

Features

The function of JWK series proximity switch(alias non-contact travel switch)is to act while approaching metal.lt is used in machine tools and other equipments for travel supervision and control without any contact or pressure.ln addition ,it is used as position deteetion transducer in the equipmemts like liquid level control, speed and revolution control of rotation gear,etc.


Technical Parameters

Supply Voltage

DC(V)

6-36

AC(V)

90-250

Frequency (Hz)

DC 300, AC 20

Rated current (mA)

DC300/AC400

Ambient temperature

-25-70

Repeat position accuracy

<=5% sn

Consumption current (mA)

<=10

Voltage drop(V)

<=2.6

Indication LED

RED

Short- circuit protection/Polarity Protection

YES

Connect type

1.5m PUR cable

Housing

ABS

Detection surface

ABS

Protection Grade

IP67

Standard

GB/T 14048.10



Dimension

M43x38x92mm

Type

DC

type

NPN

NO

JWK220-A10NA

NC

JWK220-A10NB

NO+NC


PNP

NO

JWK220-A10PA

NC

JWK220-A10PB

NO+NC


Two-wire

NO


NC


AC type

Relay output


JWK220-A10JK

JWK220-D10JK

Dimensions
