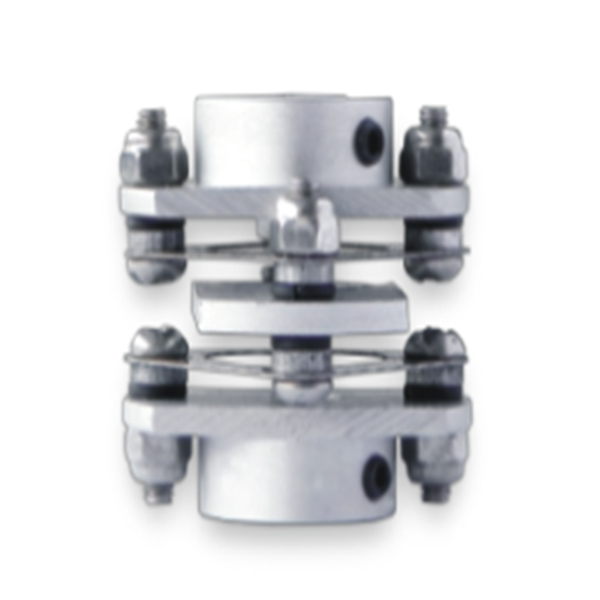

LE Series Gear Electric Motor Shaft Hight Rigid Metal Disk Coupling
A coupling is a device used to connect two shafts together at their ends for the purpose of transmitting power. Couplings do not normally allow disconnection of shafts during operation, however there are torque limiting couplings which can slip or disconnect when some torque limit is exceeded.
online service
In a more general context, a coupling can also be a mechanical device that serves to connect the ends of adjacent parts or objects.
Use and characteristics
High torque rigidity and high sensitivity.
Zero rotation gap.
Clockwise and counterclockwise rotation characteristics are exactly the same.
Stainless steel diaphragm compensates for angular and axial deviations.
Applications
1. Widely used in various mechanical and hydraulic fields
2. Small dimension, low weight, high transmitted torque
3. Elastomers made of polyurethane with shore hardness between 80-98
4. Compensating the axial relative drift, buffer and vibration reduction
5. Material: cast iron, steel and aluminum alloy
Dimensions
Product features
Model
Rated torque
(N.m)
Maximum torque
(N.m)
Maximum speed
(rpm)
Inertia moment
(kg.m²)
Static torque rigidity
(N.m/rad)
Radial deviation (mm)
Angle deviation
(ºC)
Axial deviation
(mm)
Weight
(g)
LE-34 27/XX/XX
2
4
10000
3.8*10-6
3300
0.1
1
±0.15
30
LE-40 34/XX/XX
4.5
9
10000
1.1*10-5
7000
0.1
1
±0.23
52
LE-44 34/XX/XX
6.75
13.5
10000
1.6*10-5
9000
0.1
1
±0.27
70
LE-56 45/XX/XX
20
40
10000
5.1*10-5
20000
0.1
1
±0.36
165
LE-68 54/XX/XX
50
100
9000
1.3*10-4
35000
0.1
1
±0.4
275
LE-82 68/XX/XX
80
160
8000
1.9*10-4
54000
0.1
1
±0.5
450
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
LS-D-D28L38 Encoder coupling 8-shaped coupling stepping servo motor torque Flexible couplings
Steel hubs are zinc plated.
They are precision swaged by a lifetime crimp to unique double loop element made form ELASTACAST polyurethane.
The hubs fix to sharts by metric set screws.
Maximum operating temperature is 80ºC.
YUMO LR2 series electric motor shaft flexible plastic quick rubber coupling
Flexible couplings are usually cut from a metal wire rod made of commonly used materials are aluminum, stainless steel, engineering plastics. Flexible coupling using a parallel or helical grooving system to adapt to a variety of bias and precision torque transmission. Flexible couplings usually have good performance and price advantage, and in many stepper, servo system, the practical application, elastic coupling is the preferred product. One-piece design allows flexible couplings to achieve a zero gap torque transmission and without maintenance
Learn More
DD1 Stepped double diaphragm coupling high torque stepper servo motor 8 screws Flexible couplings
Diaphragm consists of several groups with bolts staggered with two coupling halves, each of the diaphragm by a set number of sheets stacked together, diaphragm coupling by elastic deformation of the diaphragm to compensate for the relative displacement of the two axes of the Union, is a high-performance metal stronger coupling element, do not run oil, more compact structure, high strength, long life, no rotation gap, independent of temperature and oil slicks, with acid, alkali corrosion, suitable for high-temperature, high-speed, medium corrosive environmental conditions of the drive shaft
Learn More
Lb Series shaft Metal Clamping Plate Flexible Coupling
A coupling is a device used to connect two shafts together at their ends for the purpose of transmitting power. Couplings do not normally allow disconnection of shafts during operation, however there are torque limiting couplings which can slip or disconnect when some torque limit is exceeded.
Learn More
