LM30-3025PC LM30 Non-flush Cylinder Type Proximity Switch Sensor

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application , this is a very simple technology to detect 1”~2”metal object . YUMO Electric offer different series proximity sensor , that included inductive, photoelectrical, capacitive and etc. YUMO Electric continues to improve the performance and quality , enabling the sensors in a world-class level . If you are searching for proximity switch , YUMO will be your best choice .

Model:LM30-3025PC
Brand:YUMO
Code:YM00000004


LM30-3025PC LM30 non-flush Cylinder type proximity switch sens
LM30 Inductive proximity switch
DETECTION DISTANCE  10mm
Flush DC
10-30
VDC





AC
90-250
VAC
  NPN NO LM30-3010NA
NC LM30-3010NB
NO+NC LM30-3010NC
  PNP NO LM30-3010PA
NC LM30-3010PB
NO+NC LM30-3010PC

2 Wires

system

NO LM30-3010LA
NC LM30-3010LB
SCR NO LM30-2010A
NC LM30-2010B
NO+NC LM30-2010C
Relay output LM30-2010JC
Detecting rang 8mm 15mm
Non-flush

DC

10-30

VDC







AC

90-250 VAC


NPN NO LM30-3015NA
NC LM30-3015NB
NO+NC LM30-3015NC
PNP NO LM30-3015PA
NC LM30-3015PB
NO+NC LM30-3015PC

2 Wires

system

NO LM30-3015LA
NC LM30-3015LB
SCR NO LM30-2015A
NC LM30-2015B
NO+NC LM30-2015C
Relay output LM30-2015JC
Output current DC 200mA
SCR/relay 300mA/1A
Output voltage drop DC/AC DC<3V AC<10V
Consumption current DC<15mA AC<10mA
Standard detected object   30*30*1(A3 Iron)
Repeated precision 0.05
DC/AC Response Frequency 200Hz/25Hz
Working environment temperature  -25ºC~+65ºC
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67
1

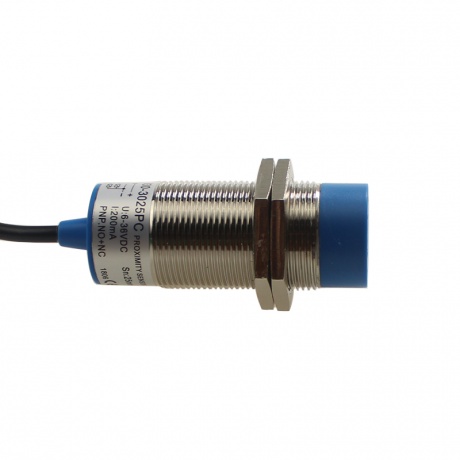

Product Pictures

LM30-3025PC (2)LM30-3025PC (1)
