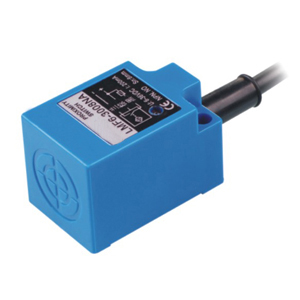

LMF6 Inductive proximity switches sensors
online service
OVERALL DIMENSIONS |
![]() |
|||
|
DETECTION DISTANCE 8mm | |||
F l u s h |
DC 10- 30 VDC AC 90- 250 VAC |
NPN | NO | LMF6-3008NA |
NC | LMF6-3008NB | |||
NO+NC | LMF6-3008NC | |||
PNP | NO | LMF6-3008PA | ||
NC | LMF6-3008PB | |||
NO+NC | LMF6-3008PC | |||
two wire system |
NO | LMF6-3008LA | ||
NC | LMF6-3008LB | |||
SCR Control- lable silicon |
NO | LMF6-2008A | ||
NC | LMF6-2008B | |||
NO+NC |
|
|||
Relay output |
|
|||
|
DETECTION DISTANCE 10mm | |||
F l u s h |
DC 10- 30 VDC AC 90- 250 VAC |
NPN | NO | LMF6-3010NA |
NC | LMF6-3010NB | |||
NO+NC | LMF6-3010NC | |||
PNP | NO | LMF6-3010PA | ||
NC | LMF6-3010PB | |||
NO+NC | LMF6-3010PC | |||
two wire system |
NO | LMF6-3010LA | ||
NC | LMF6-3010LB | |||
SCR Control- lable silicon |
NO | LMF6-2010A | ||
NC | LMF6-2010B | |||
NO+NC |
|
|||
Relay output |
|
|||
Control output | DC | 200mA | ||
SCR/ Relay | 300mA/1A | |||
Output voltage dropDC/AC | DC<3V、AC<10V | |||
Consumption current | DC<15mA、AC<10mA | |||
Standard detected object | 30X30X1(A3 iron) | |||
Repeated precision | 0.05 | |||
DC/AC | 200Hz/25Hz | |||
Working environment temperature | -25℃~+75℃ | |||
Insulation resistance | 50MΩ | |||
Shell material | ABS Resin | |||
Protection grade | IP67 | |||
Altemative model at home and abroad | TL-N5ME口口 |
