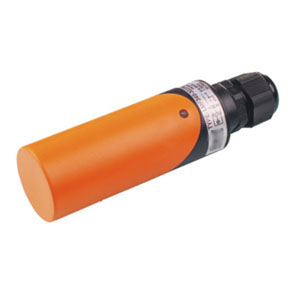

LMF7 Inductive proximity switches sensors

OVERALL DIMENSIONS LMF7 Inductive proximity switches sensors

     DETECTION DISTANCE                             10mm

F
l
u
s
h

DC
10-
30
VDC



AC
90-
250
VAC
NPN NO LMF7-3010NA
NC LMF7-3010NB
NO+NC
PNP NO LMF7-3010PA
NC LMF7-3010PB
NO+NC

two wire
system
NO LMF7-3010LA
NC LMF7-3010LB
SCR

Control-
lable
silicon
NO LMF7-2010A
NC LMF7-2010B
NO+NC LMF7-2010C
Relay output

      DETECTION DISTANCE                           15mm

F
l
u
s
h

DC
10-
30
VDC



AC
90-
250
VAC
NPN NO LMF7-3015NA
NC LMF7-3015NB
NO+NC LMF7-3015NC
PNP NO LMF7-3015PA
NC LMF7-3015PB
NO+NC LMF7-3015PC

two wire
system
NO LMF7-3015LA
NC LMF7-3015LB
SCR

Control-
lable
silicon
NO LMF7-2015A
NC LMF7-2015B
NO+NC LMF7-2015C
Relay output

Control output
DC 200mA
SCR/ Relay 300mA
  Output voltage dropDC/AC  DC<3VAC<10V
  Consumption current DC<15mAAC<10mA
  Standard detected object 35X35X1(A3 iron)
  Repeated precision 0.05
  DC/AC 200Hz/15Hz
  Working environment temperature -25+75
  Insulation resistance 50MΩ
  Shell material ABS Resin
  Protection grade IP67
  Altemative model at home and abroad TL-N10M
