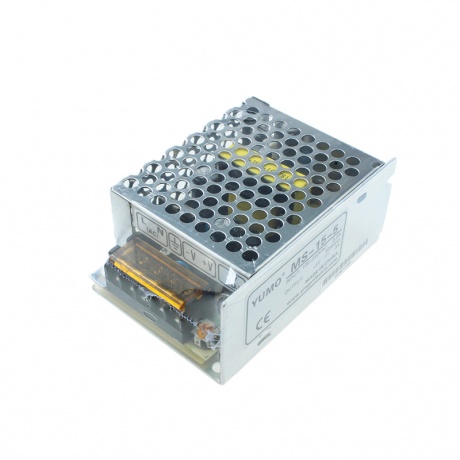

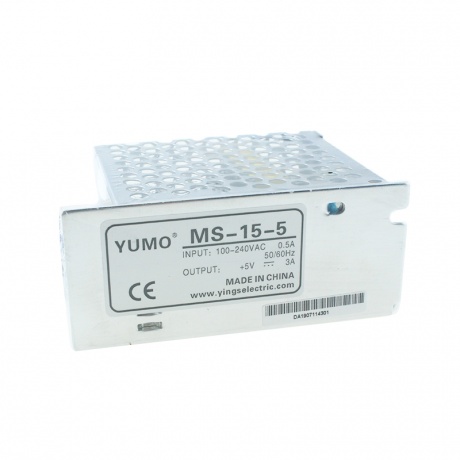

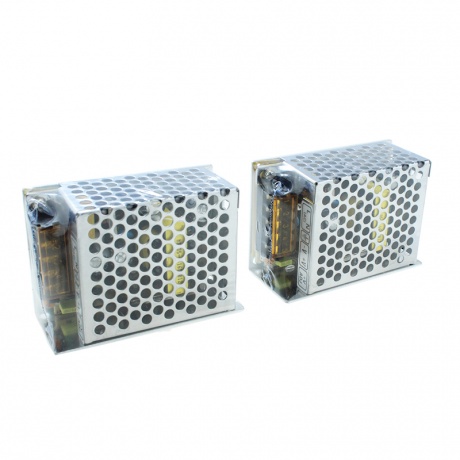

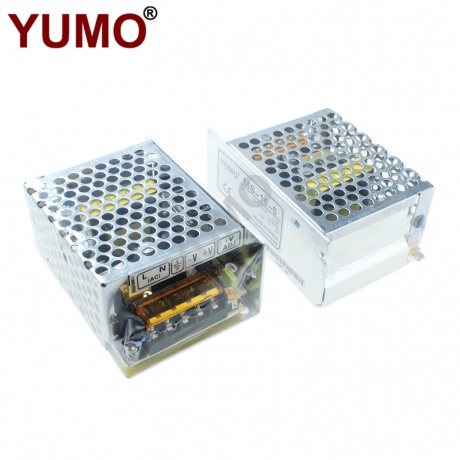

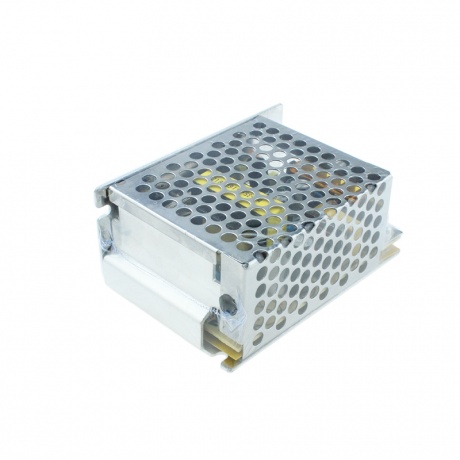

YUMO MS-15-5 15W DC Mini Size Switching Power Supply

YUMO Switching power supply products are widely used in industrial automation control, military industry equipment, scientific research equipment, LED lighting, industrial control equipment, communications equipment, electrical equipment, instrumentation, medical equipment, semiconductor refrigeration and heating, air purifier, electronic refrigerator, LCD, LED lamps and lanterns, communications equipment, audio and video products, security monitoring, LED lights belt, computer case, digital products and instruments, etc.

Model:MS-15-5
Brand:YUMO
MOQ:1

online service

Tel:0086-15356229951

Email: sale@yingselectric.com

Skype: benjaminying

PDF Download
Inquiry
The previous
Next
YUMO MS-15-5  15W DC Mini  size Switching Power Supply

Features:

Low price and high reliability

105ºC output capacitor

AC input power suitable for the world

High Efficiency and low operation temperature

Soft-strat current can reduce the AC input impact effecticly

With-short-circuit and overload protection

Compact size, light weight

100% full load burn-in test

Installed with EMI filter, minimum mave

Model MS-15-5 MS-15-12 MS-15-24
DC output voltage 5V 12V 24V
Output voltage tolerance ±2% ±1% ±1%
Rated output current 3A 1.3A 0.7A
Output current range 0-3A 0-1.3A 0-0.7A
Ripple and noise 50mVp-p 50mVp-p 100mVp-p
Inlet stability ±0.5% ±0.5% ±0.5%
Load stability ±1% ±0.5% ±0.5%
DC output power 15W 15.6W 16.8W
Efficiency 65% 68% 72%
Output voltage adjustment range ±10,-5% ±10 ±10
AC input voltage range AC100-264V 47~63Hz 240-370VDC
Input current 0.5A/115V 0.25A/230V
AC impulse current Cold-start current 15A/115V 30A/230V
Leakage current <0.5mA/240VAC
Overload protection

105%~150% Type:Pulsing hiccup shutdown

Reset:auto recovery

Over-voltage protection ..........
High-Temperature protection ..........
TEMP. coefficient ±0.02%°C(0~50°C)
Setup rise hold up time 200ms 100ms 30ms
Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage

Input and ouput intemal:1.5KVAC

Input and enclosure:1.5KVAC

Output and enclosure:0.5KVAC

Isolation resistance

Input and ouput intemal:input and enclosure

Input and enclosure:500vdc/100MΩ

Working temperature and humidity -10°C~+60°C,20~90%RH
Store temperature and humidity -20°C~+85°C,10~95%RH
Overall dimension 120*46*32mm
Weight 0.3Kgs
Safety standards Meet UL 1012 requirement(Not apply for the mark)
EMC standards Meet FCC PART15 J Conduction class B

MS-15-5 (9)
