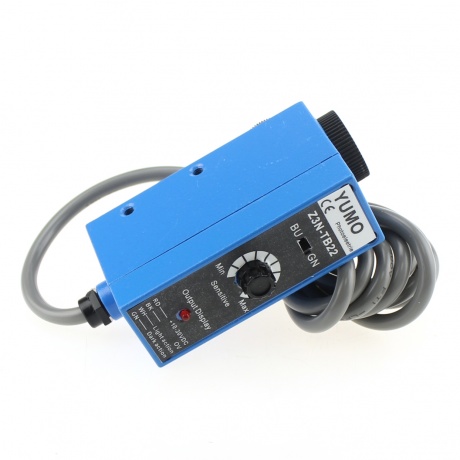

Z3N-TB22 Color Mark Sensor

Z3N series color mark sensor will emit light rays to scan the detected surface, and can identify the different color marks through receiving different intensity of light reflected back from different colors on the surface.
Coaxial optical design, more adaptable to surfaces of high-reflectance (such as Aluminum foil)
With light sources of blue, green, red, and various other colors for selection, more accurately to identify various colors.
Small light spot, excellent resolution.
Short response time of 0.1-1ms, can adapt to control demand of various packaging machines, bagging machines and printing machines.
Outstanding internal circuit design that can resist various electromagnetic and optical interference, has stability and no error action
With sensitivity adjustment knob, need no tool to adjust.

Model:Z3N
Brand:YUMO

online service

Tel:0086-15356229951

Email: sale@yingselectric.com

Skype: benjaminying

Z3Nseries of color-sensor

●      Z3N series color mark sensor will emit light rays to scan the detected surface, and can identify the different color marks through receiving different intensity of light reflected back from different colors on the surface.
●      Coaxial optical design, more adaptable to surfaces of high-reflectance (such as Aluminum foil)
●      With light sources of blue, green, red, and various other colors for selection, more accurately to identify various colors.
●      Small light spot, excellent resolution.
●      Short response time of 0.1-1ms, can adapt to control demand of various packaging machines, bagging machines and printing machines.
●      Outstanding internal circuit design that can resist various electromagnetic and optical interference, has stability and no error action
●      With sensitivity adjustment knob, need no tool to adjust.


 Model List

Type Light source cable Type Light source cable
TR22 Red four wire TR2 Red Three wire
RG22 Green four wire RG2 Green Three wire
T22 Red+green four wire T2 Red+green Three wire
TB22 Green+blue four wire TB2 Green+blue Three wire
TW22 Green+white four wire TW2 Green+white Three wire

Technical parameters

Test type Coaxial election Load current 200Ma(max)
Scanning distance 10mm±2mm
Circuit protection device

With power reverse protection,

has short-circuited protection.

When loading current L mA,

the sensor automatically turns off,

the sensor automatically recovers when L200mA,

Has self-protection for any error-wiring.


Supply voltage DC10-30V±10%(Bellows)<10%

Current: consumption
<45mA
Source chromatography Red, green, blue(select according to the model list) Sensitivity Single cycle adjustable
Spot Φ0.5~Φ1.5 Anti-environment Light

(incandescent)<3000L

X(Sunlight)10000LX

Detection of perspective
Light rays should be vertical to the detected surface, a variance of +15 is allowed

Protection
Level

IP67( moisture-proof and dust-proof
Response time 0.1~1ms Temperature (Operation)-15℃-65℃(Save)-15℃-80℃
Output  act when light up/act when darken optional  Case material Metal

Output instructions
(Red)LED
Raises thread

Φ5.4PVC four-core shield and sheathed cable,

standard length of 2m


Output voltage
(high)VS-(≤1.5)(low)(≤1.2V) Weight (About)500g
