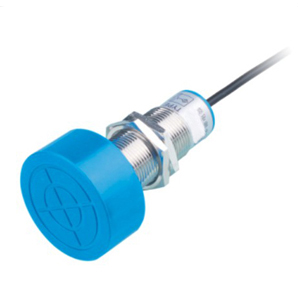

LM39 Inductive proximity switches sensors
online service
| DETECTION DISTANCE | ||||
|
F l u s h |
DC 10- 30 VDC AC 90- 250 VAC |
NPN | NO |
|
| NC |
|
|||
| NO+NC |
|
|||
| PNP | NO |
|
||
| NC |
|
|||
| NO+NC |
|
|||
|
two wire system |
NO |
|
||
| NC |
|
|||
|
SCR Control- lable silicon |
NO |
|
||
| NC |
|
|||
| NO+NC |
|
|||
| Relay output |
|
|||
|
|
DETECTION DISTANCE 15mm | |||
|
F l u s h |
DC 10- 30 VDC AC 90- 250 VAC |
NPN | NO | LM39-3015NA |
| NC | LM39-3015NB | |||
| NO+NC | LM39-3015NC | |||
| PNP | NO | LM39-3015PA | ||
| NC | LM39-3015PB | |||
| NO+NC | LM39-3015PC | |||
|
two wire system |
NO | LM39-3015LA | ||
| NC | LM39-3015LB | |||
|
SCR Control- lable silicon |
NO | LM39-2015A | ||
| NC | LM39-2015B | |||
| NO+NC | LM39-2015C | |||
| Relay output |
|
|||
|
Control output |
DC | 200mA | ||
| SCR/ Relay | 300mA/1A | |||
| Output voltage dropDC/AC | DC<3V、AC<10V | |||
| Consumption current | DC<15mA、AC<10mA | |||
| Standard detected object | 45X45X1(A3 iron) | |||
| Repeated precision | 0.1 | |||
| DC/AC | 100Hz/25Hz | |||
| Working environment temperature | -25℃～+75℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad | SC-口口 | |||
