 Home » Products » slip rings » YUMO 22mm 8rings 10A Electrical Contacts Capsule Slip Ring Carbon Brush Holder for Slip Ring

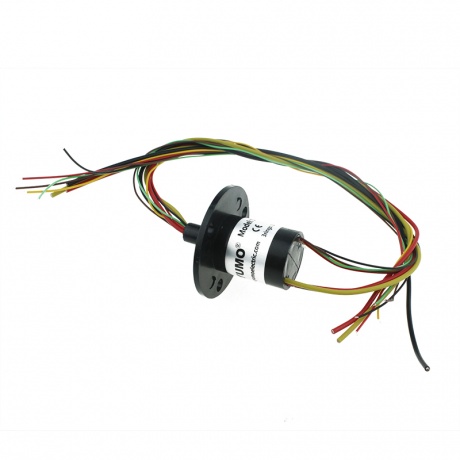

YUMO 22mm 8rings 10A Electrical Contacts Capsule Slip Ring Carbon Brush Holder for Slip Ring

The carbon brush holder for slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The carbon brush holder for slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

Model:SR022-0305-3P/5S
Brand:YUMO
MOQ:5

YUMO  22mm 8rings 10A electrical contacts Capsule slip ring carbon brush holder for slip ring

Carbon brush holder for slip ring, Capsule carbon brush holder for slip ring SR022-0305-3P/5S

Description:

          The carbon brush holder for slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The carbon brush holder for slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.



Technical Data:
1. Circuit No: 8 wires;
2. Voltage: 0-380VAC/240VDC;
3. Current: 10A/3wire; 2A/5wire;
4. Contact material: Precious metal;
5: Lead wire length: Rotot wire 250mm,Stator wire 250mm;
6. Insulation resistance:≥100MΩ/500VDC;
7. Dielectric strength:≥500V/50Hz.AC 60S;
8. Speed: 0-250rpm;
9. Work Temp: -40℃ -+80℃;
10. IP grade: IP51;

Pictures

SR022-0305-3P5S (3)SR022-0305-3P5S (2)SR022-0305-3P5S (4)
